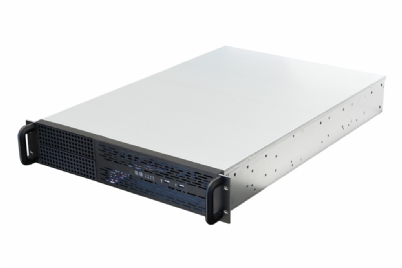

2U Standard Chassis 6 x 3.5" HDD + 2x 5.25" Bays

Key Product Features:

  • 2U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 6 Fixed Bays - Internal - 3.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-23650
2U Standard Chassis 6 x 3.5

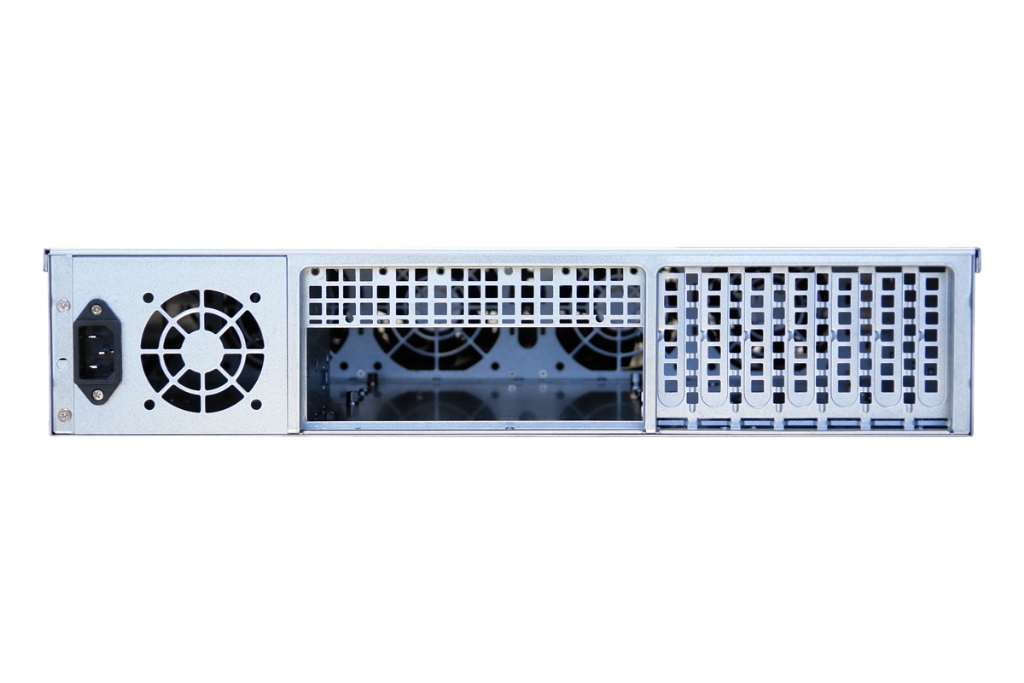

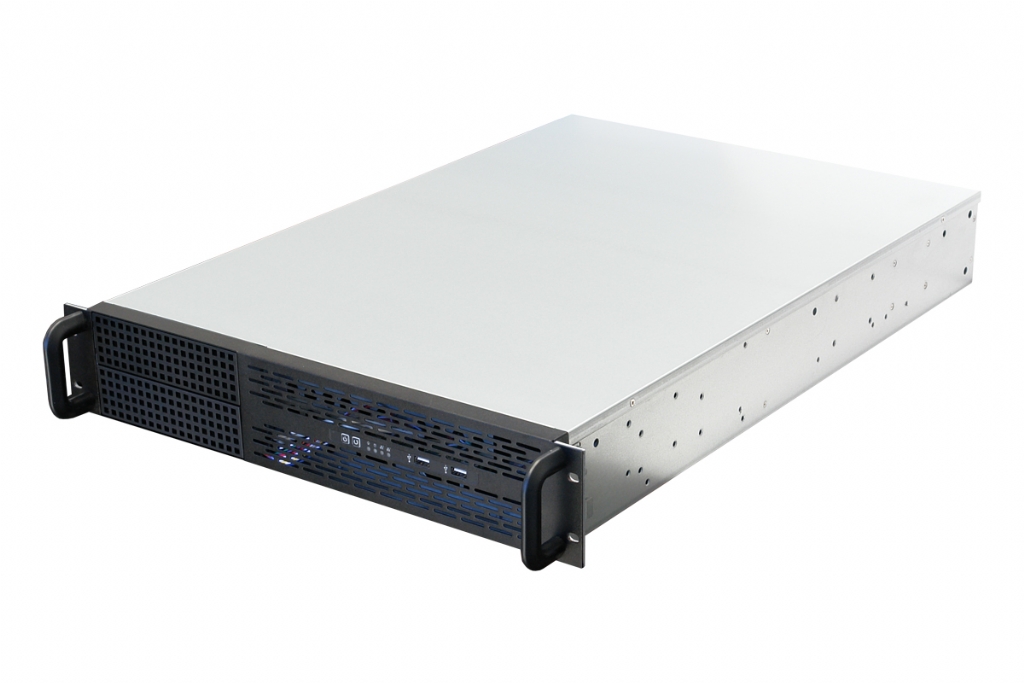

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-23650 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 6
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height Note: Alternative backplate allows 3 x full height PCI slots. Use backplate SC-BKT-008
Low Profile 7

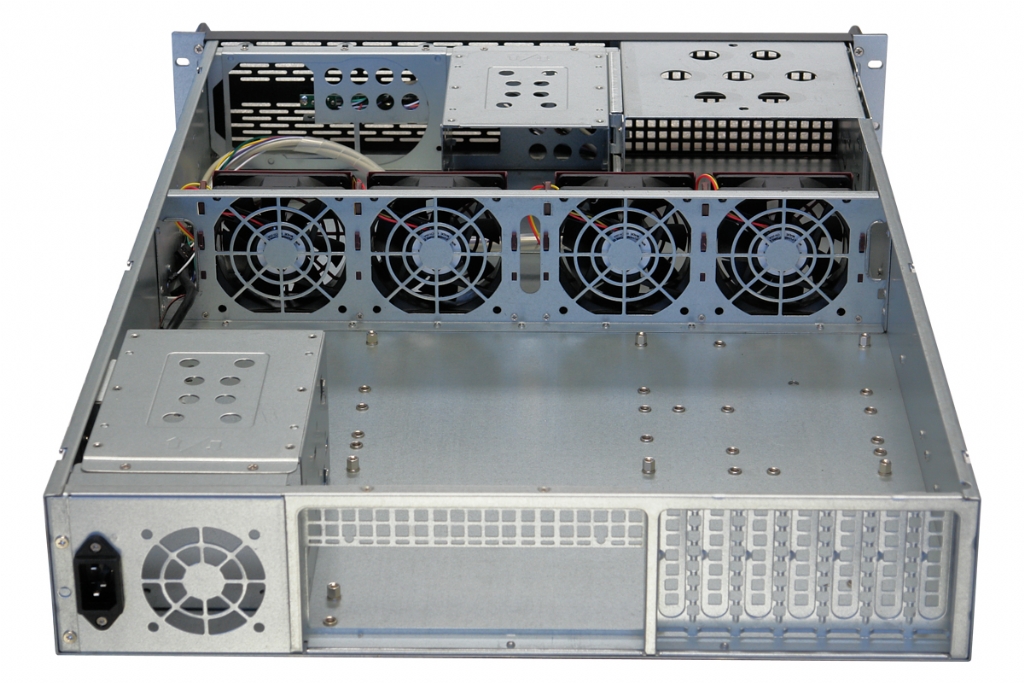

Cooling 4 x 80mm fans in centre fan wall.
Power Supply Form Factor Standard ATX PS/2 front mounted power supply, standard 2U rear mounted power supply or 2U redundant rear mounted power supply.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 19" x 25.5" x 3.5" (483mm x 650mm x 88mm) (WxDxH)
Weight 12.0 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
