2U Standard Chassis 9x 3.5" Internal HDD - 550mm Deep

Key Product Features:

  • 2U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 9 Fixed Bays - Internal - 3.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-H2-550
2U Standard Chassis 9x 3.5

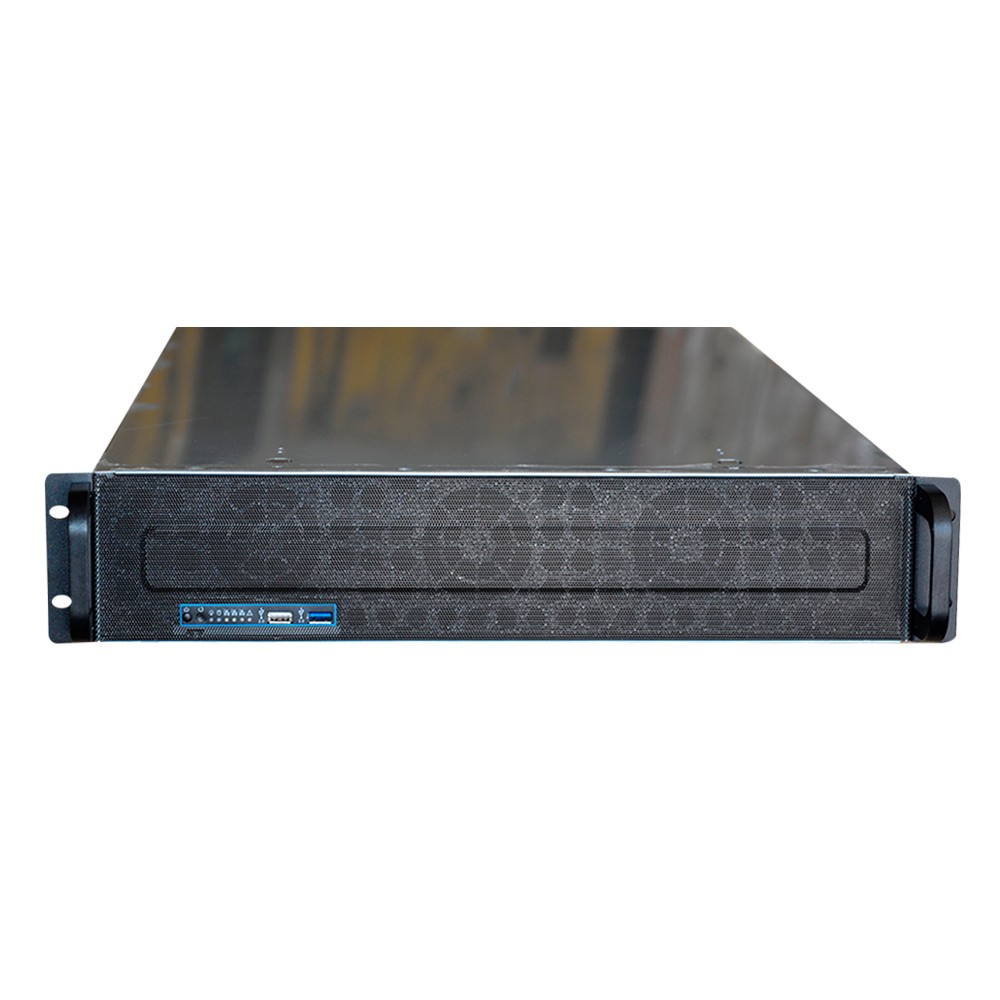

Photo 1

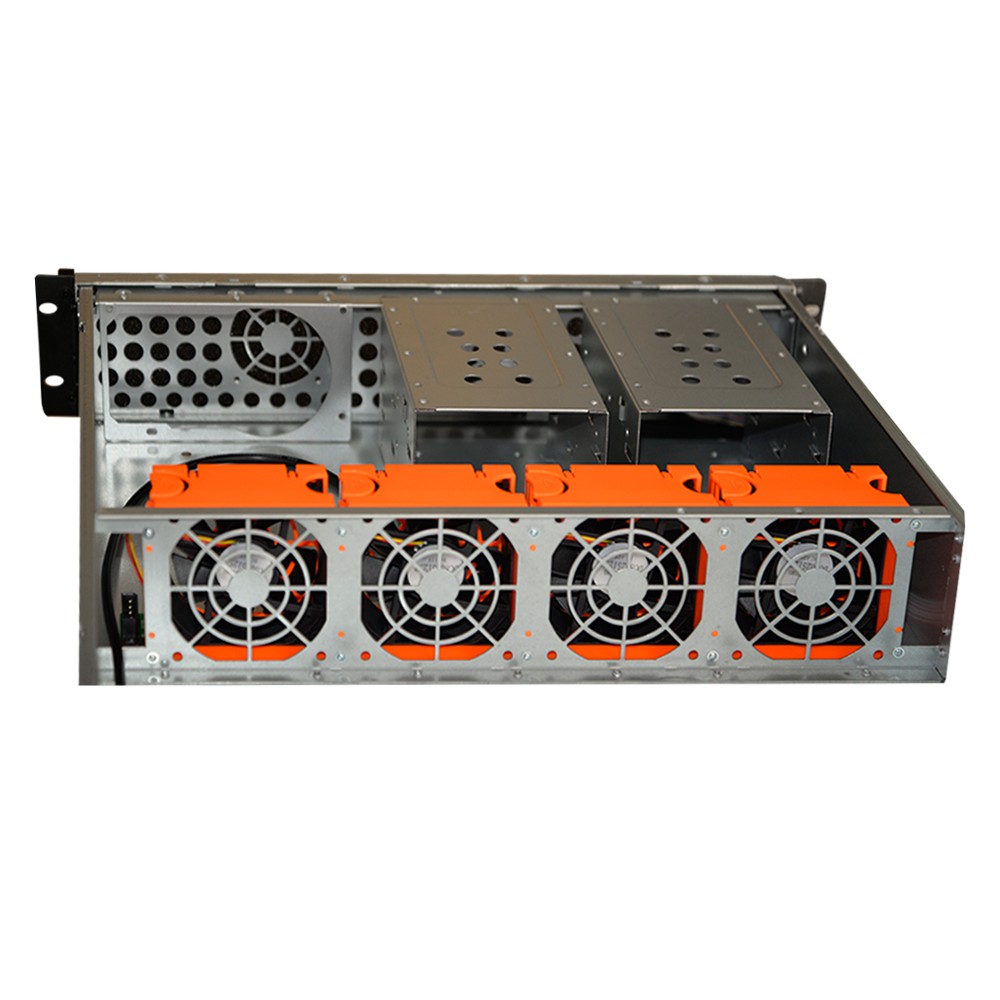

Photo 2

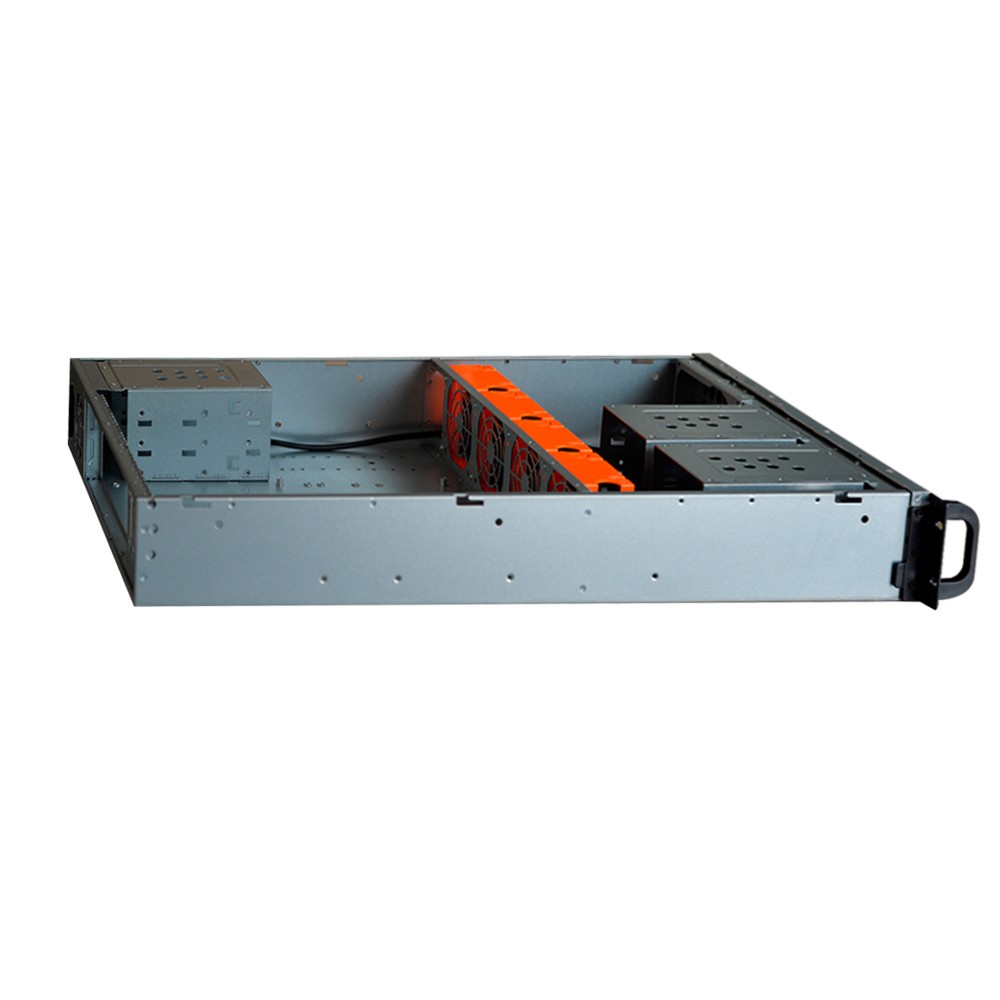

Photo 3

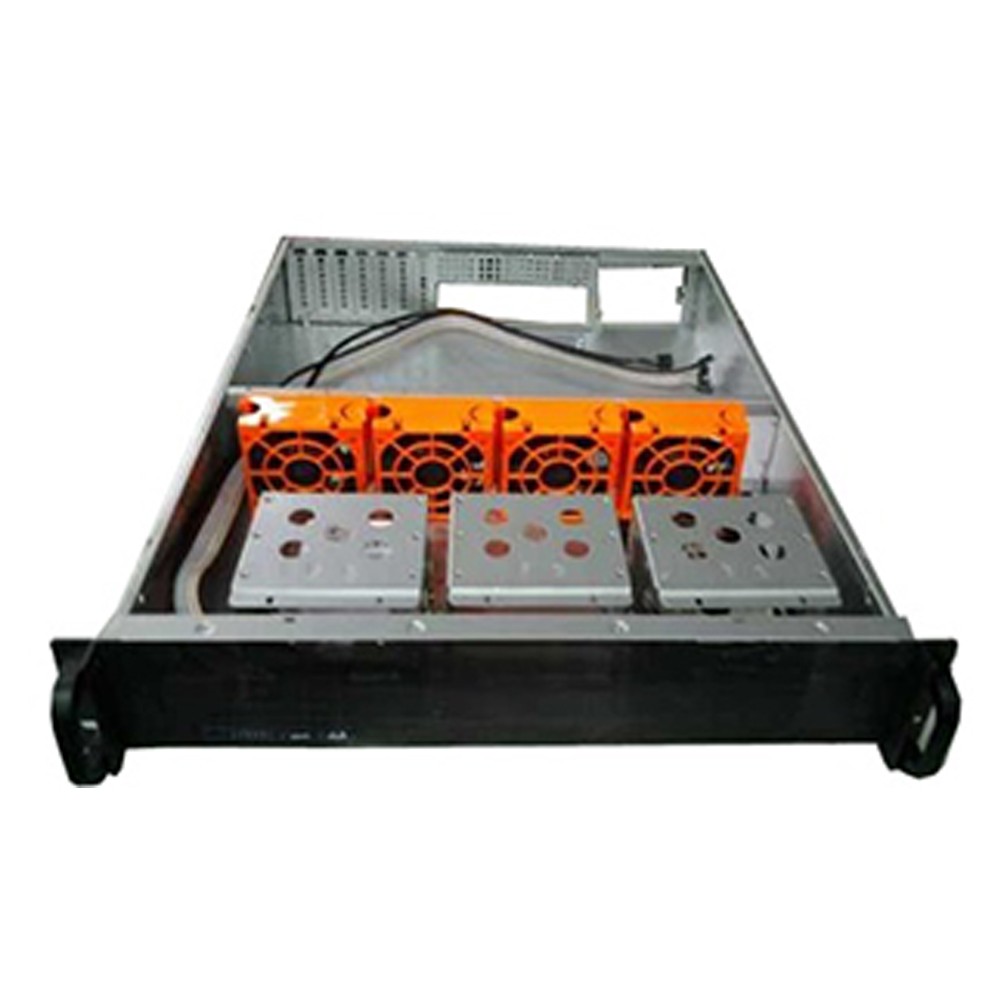

Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H2-550 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility
  • CEB(12"x10.5")
  • ATX (12"x9.6")
  • Micro ATX (9.6" x 9.6")
  • Mini ITX (6.7" X 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 9
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 7 x PCI or PCI-E
Cooling

4 x 80mm hot-swap ball bearing fans for better ventilation

Power Supply Form Factor
  • ATX (TGC-SERVERATX450)
  • Standard 2U PSU (TGC-SG2U600)
  • 2U redundant 1+1 (TGC-MR2-600/TGC-R2-400)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions (DxWxH) 550mm x 430mm x 89mm
Weight 10.35 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
