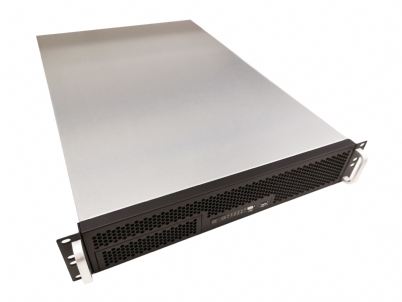

2U Standard Chassis 9x 3.5" Internal HDD - 650mm Deep

Key Product Features:

  • 2U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 88.8mm Chassis Height
  • 2U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 9 Fixed Bays - Internal - 3.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-20650
2U Standard Chassis 9x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-20650 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

1 (Note, Front 3x 3.5" Bay must be removed)
External 3.5" 0
Internal 3.5" 9
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 7
Cooling 3 x 80mm Centre Mounted (Molex Power Input)
Power Supply Form Factor 2U Single Rear Mounted (Note, Rear 3x 3.5" Bay must be moved to front)
Standard ATX (8cm Fan Only) - Front Mounted
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 650mm Depth X 430mm Width X 88.8mm Height
Weight 17kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
