2U Standard Chassis 9x 3.5" Internal HDD - 650mm Deep

Key Product Features:

  • 2U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 88mm Chassis Height
  • Standard ATX PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 9 Fixed Bays - Internal - 3.5"
Product Code/SKU: SC-H2-650
2U Standard Chassis 9x 3.5

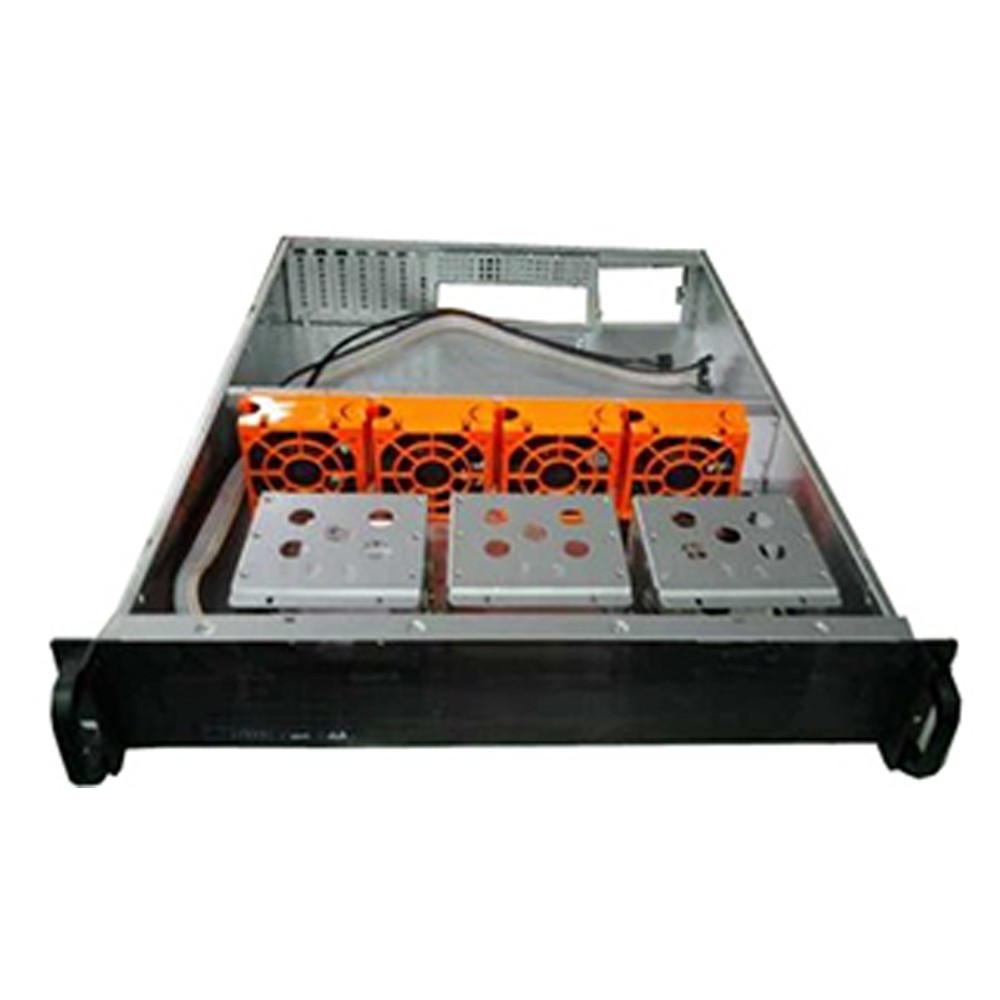

Photo 1

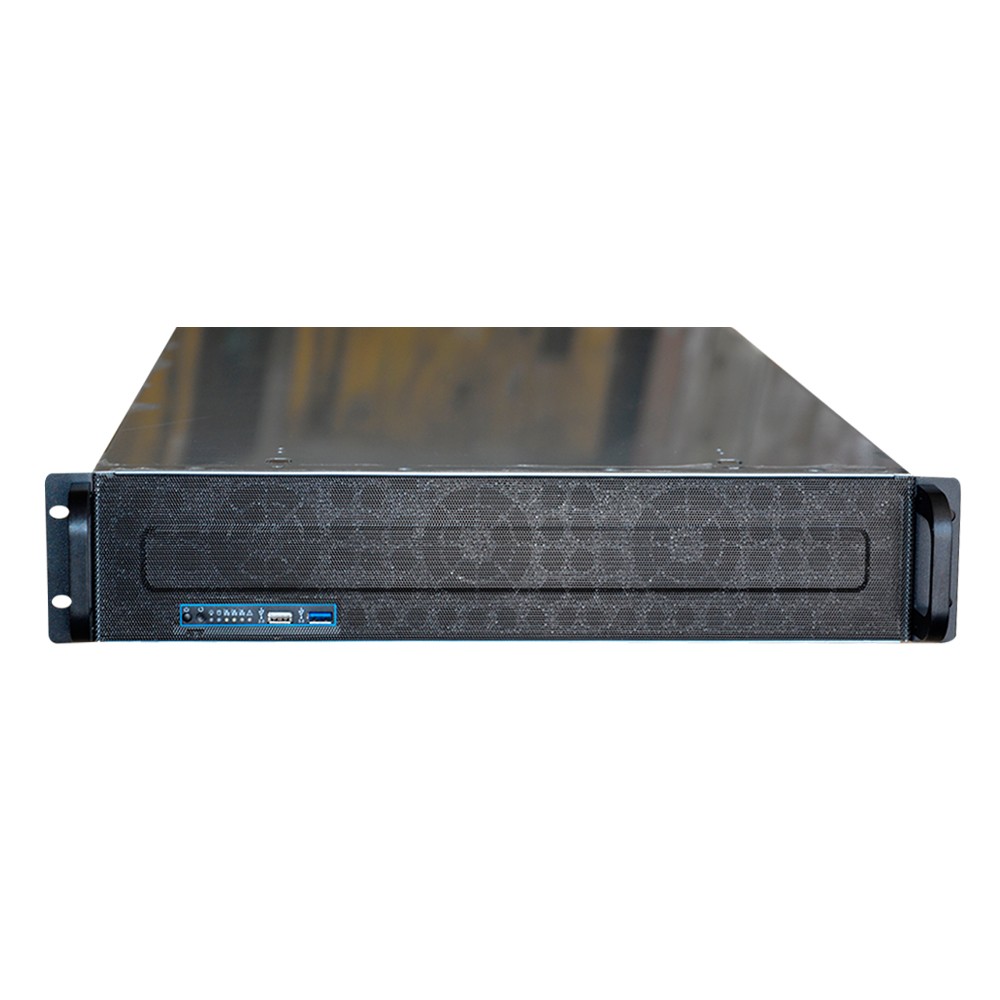

Photo 2

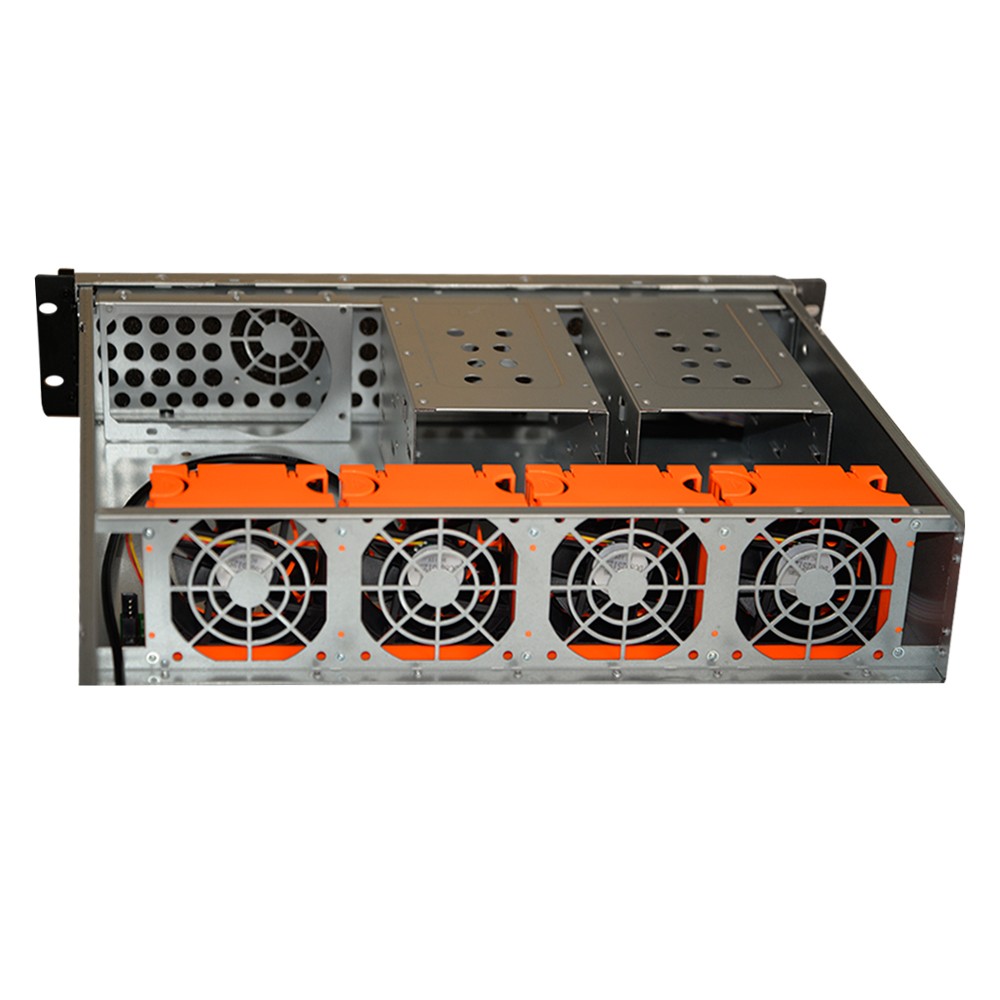

Photo 3

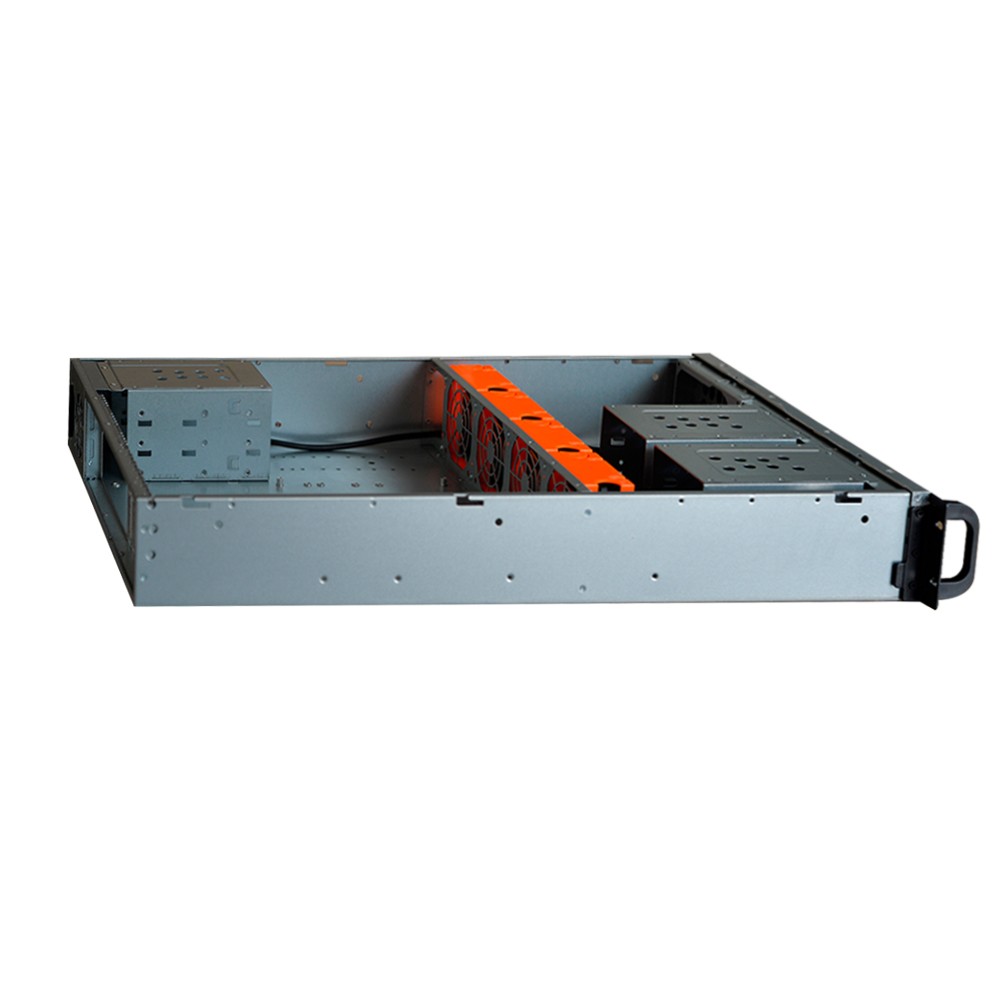

Photo 4

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H2-650 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 2U Rackmount
Motherboard Compatibility
  • EEB (12"x13")
  • CEB(12"x10.5")
  • ATX (12"x9.6")
  • Micro ATX (9.6" x 9.6")
  • Mini ITX (6.7" X 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 9
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 0
Low Profile 7 x PCI or PCI-E
Cooling 4 x 80mm front fans - Hot-Swap
Power Supply Form Factor Standard ATX (80mm Fans) or 2U Single PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions (DxWxH): 650mm x 430mm x 89mm
Weight 11.55 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
