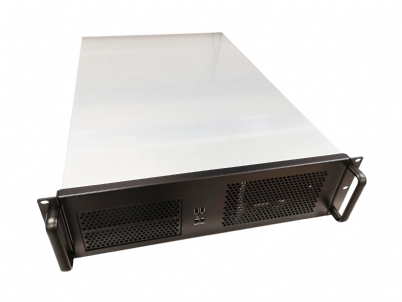

3U Chassis - Supports 8x 3.5" Internal Bays and 2x 5.25" External Bays - EATX Support

Key Product Features:

  • 3U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 133mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 8 Fixed Bays - Internal - 3.5"
  • 2 Fixed Bays - Internal - 2.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-34650
3U Chassis - Supports 8x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-34650 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 3U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 8
Internal 2.5" 2
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 4x 80mm Middle Fans Included
1x 80mm Rear Fan Optional
Power Supply Form Factor ATX - Front Mounted - 80mm Fan PSU Only
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 430mm X 133mm X 650mm (WxHxD mm)
Weight 5kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
