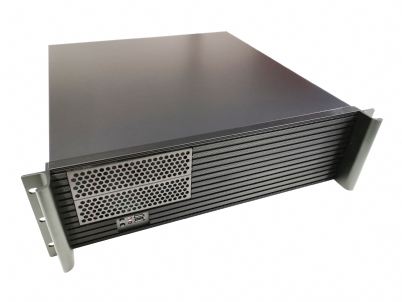

3U Rackmount Chassis, 450mm depth with 2 x 5.25" drive bays
Key Product Features:
- 3U Rackmount Form Factor
- 450mm Chassis Depth
- 483mm Chassis Width
- 133mm Chassis Height
- Standard ATX PSU Compatibility
- Standard ATX M/B Form Factor
- 2 Fixed Bays - External - 5.25"
- 4 Fixed Bays - Internal - 3.5"
- 5 Full Height PCI Expansion Slots
Product Code/SKU: SC-33450
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-33450 from Server Case UK
Call: 0800 652 1649 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 3U Rackmount | |
| Motherboard Compatibility | Mini-ITX, Micro ATX, Standard ATX (Note only 5 slots available on Standard ATX board when fitted) |
|
| Drive Bays |
External 5.25" |
2 |
| External 3.5" | 0 | |
| Internal 3.5" | 4 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 5 |
| Low Profile | 0 | |
| Cooling | 3 x 80mm Front Fans Included 2 x 60mm Rear Fans Optional |
|
| Power Supply Form Factor | Standard ATX (80mm Fan Recommended) | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | 483mm x 133mm x 450mm (WxHxD mm) | |
| Weight | 3kg (Approx) | |
| What's Included | ||
|
||
