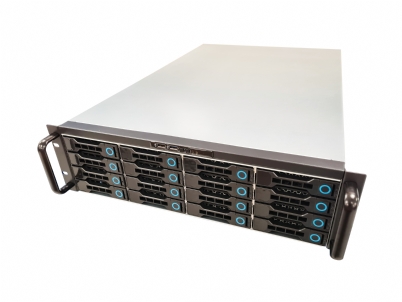

3U Server Case w/ 16x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12Gb/s HD MiniSAS
Key Product Features:
- 3U Rackmount Form Factor
- 650mm Chassis Depth
- 430mm Chassis Width
- 133mm Chassis Height
- 3U Redundant PSU Compatibility
- EEB (12" x 13") M/B Form Factor
- 2 Fixed Bays - Internal - 2.5"
- 16 Hot-Swap Bays - 3.5"
- 1 Slim ODD
- 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-316
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-316 from Server Case UK
Call: 0800 652 1649 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 3U Rackmount | |
| Motherboard Compatibility | Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 0 | |
| Internal 2.5" | 2 | |
| Hotswap 3.5" | 16 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | 16x Hot-Swap Bays with 4x HD MiniSAS (SFF-8643) Connections | |
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |
| Cooling | 3x 120mm Hot-Swap High CFM PWM Fans 2x 60mm Optional Rear Fans |
|
| Power Supply Form Factor | 2U Single PSU 2U CRPS Redundant PSU |
|
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 1 | |
| USB 3.0 | 1 | |
| Serial | 0 | |
| Indicators | Power and HDD LEDs | |
| Colour | Silver | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 16.9" x 25.5" x 5.1 " (430mm x 650mm x 130.1mm) | |
| Weight | 16.3 kg (Approx) | |
| What's Included | ||
|
||
