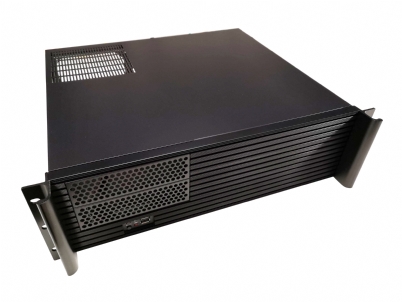

3U Short Depth Chassis - Supports 7x 3.5" Internal Bays and 2x 5.25" External Bays

Key Product Features:

  • 3U Rackmount Form Factor
  • 400mm Chassis Depth
  • 483mm Chassis Width
  • 133mm Chassis Height
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 7 Fixed Bays - Internal - 3.5"
  • 5 Full Height PCI Expansion Slots
Product Code/SKU: SC-32380
3U Short Depth Chassis - Supports 7x 3.5

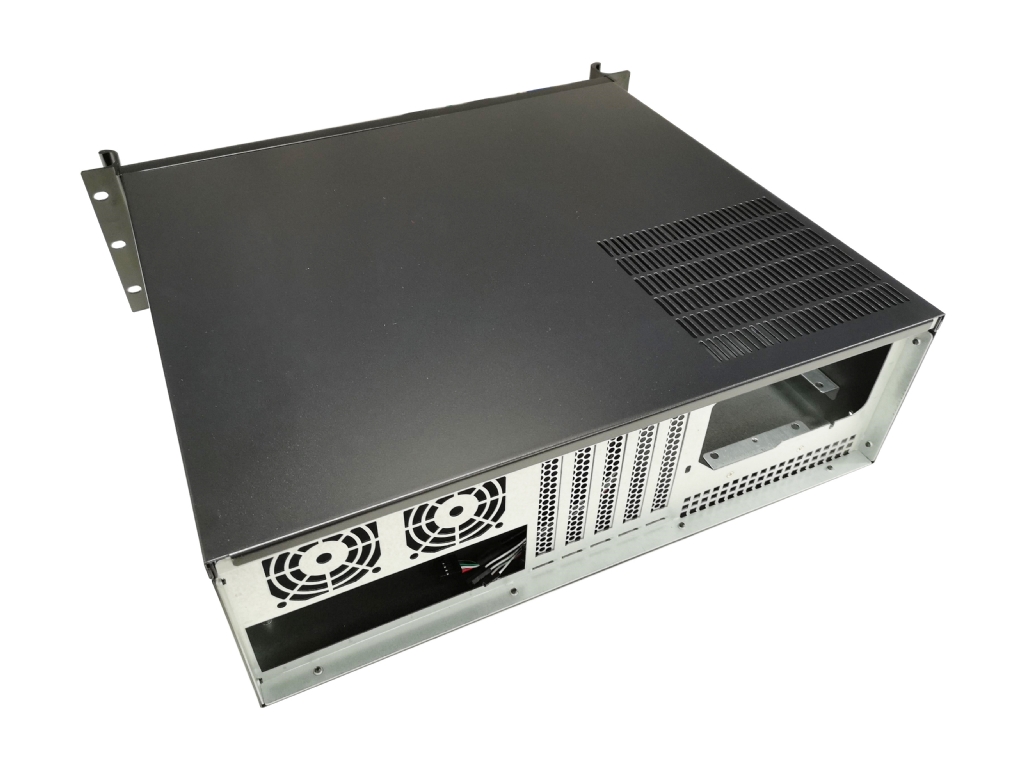

Photo 1

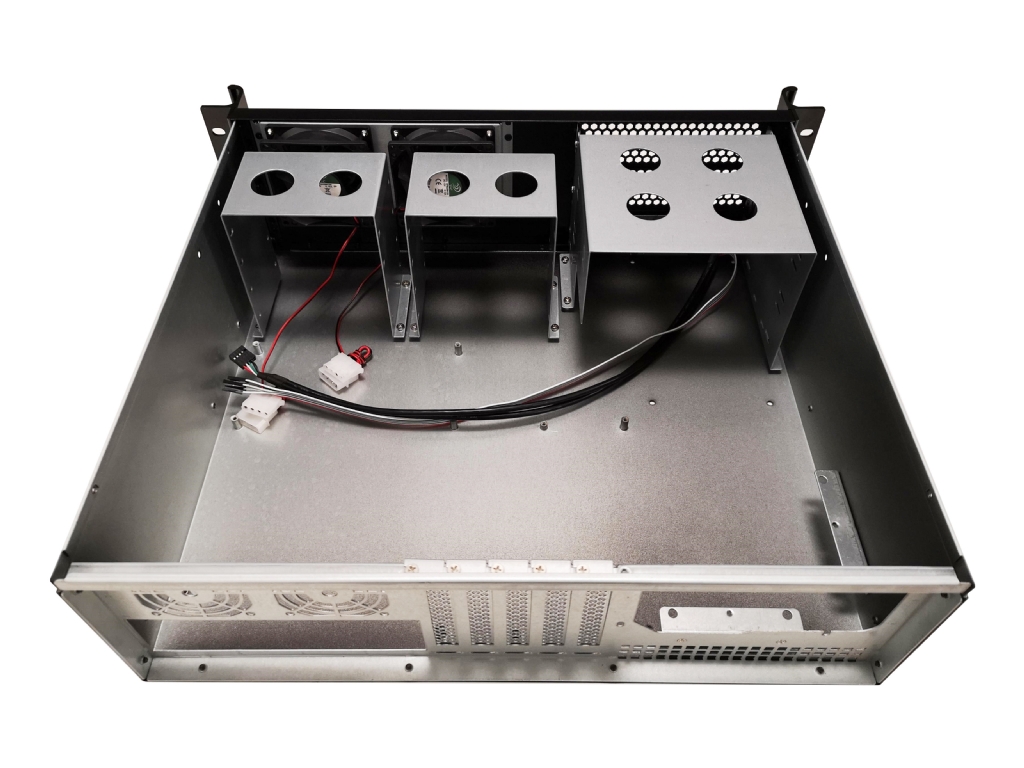

Photo 2

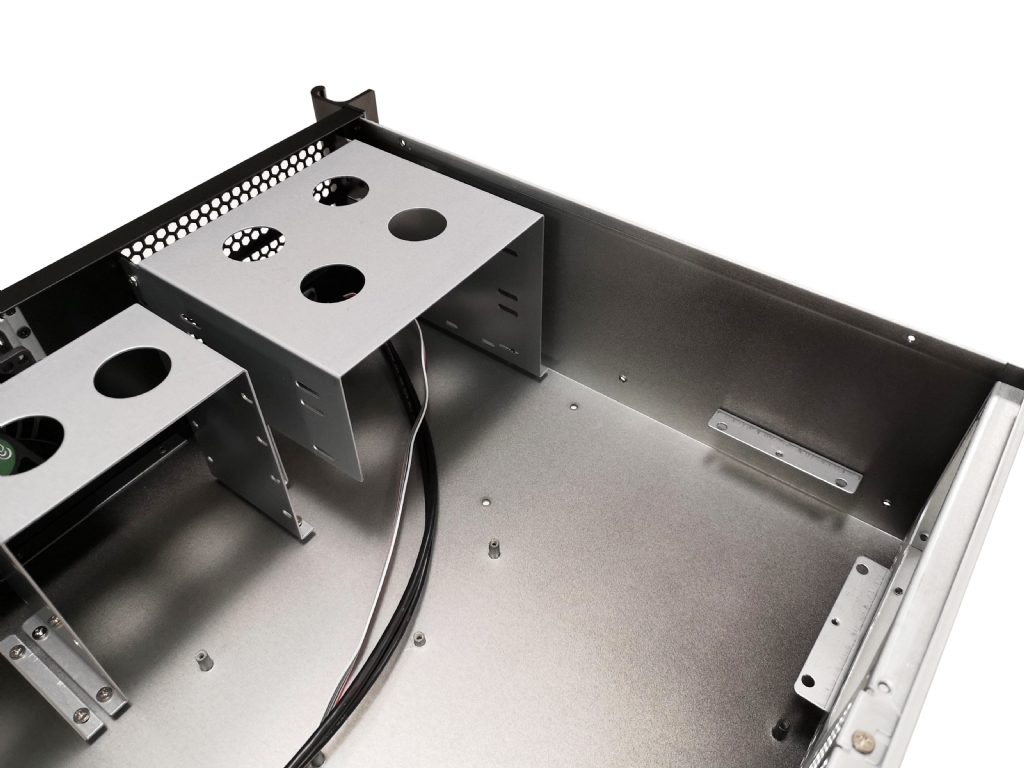

Photo 3

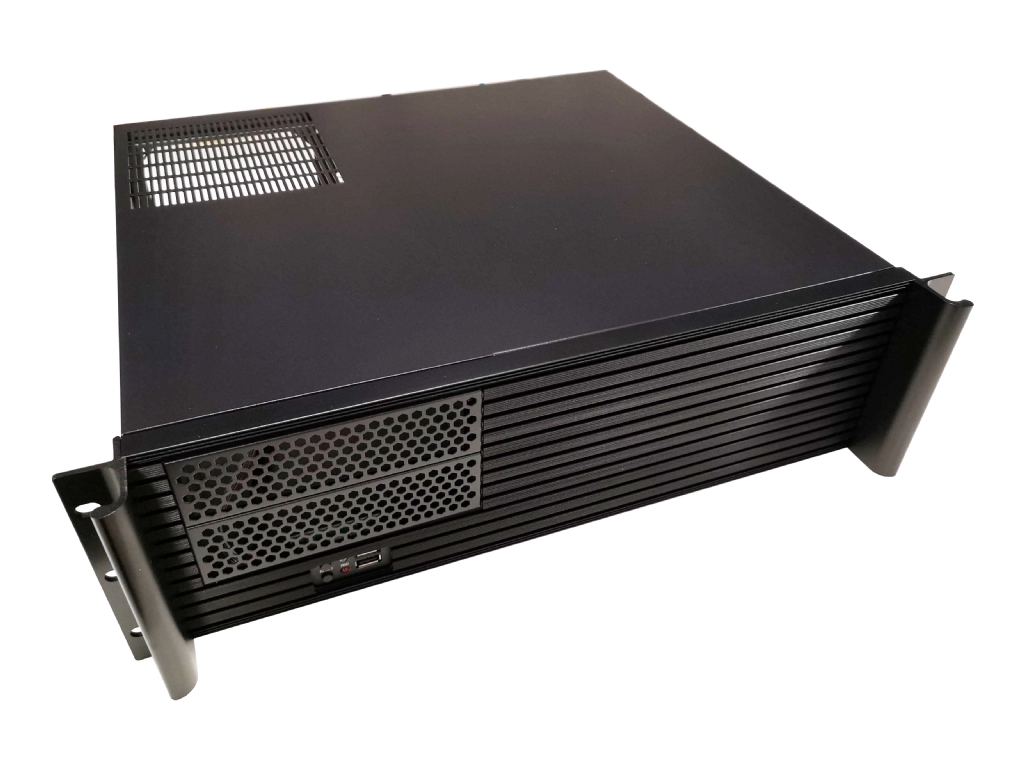

Photo 4
Photo 5

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-32380 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 3U Rackmount
Motherboard Compatibility ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 7 (8 if using Mini-ITX motherboard)
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 4
Low Profile 0
Cooling Front 2 x 80mm - Rear 2x 60mm
Power Supply Form Factor Supports ATX PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 15" x 5.25" (483mm x 400mm x 133mm)
Weight 6.5 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
