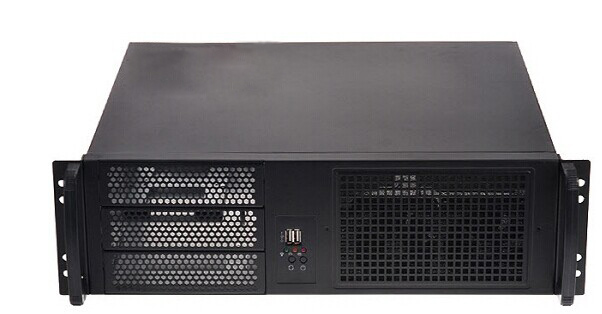

3U Short Depth Chassis w/ 3 x 5.25" drive bays
Key Product Features:
Product Code/SKU: SC-34390
Buy Now
Server Case
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-34390 from Server Case UK
Call: 01283 576162 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 3U Rackmount | |
| Motherboard Compatibility | Supports Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") | |
| Drive Bays |
External 5.25" |
3 |
| External 3.5" | 0 | |
| Internal 3.5" | 8 Please Note: 6 Bays accesible when a Micro ATX motherboard is installed. |
|
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 5 |
| Low Profile | 0 | |
| Cooling | Supplied with 2 x 80mm front ball bearing fans fitted plus up to 2 optional exhaust fans. | |
| Power Supply Form Factor | Standard ATX | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 15" x 5.3" (483mm x 390mm x 133mm) | |
| Weight | 6.5 kg (Approx) | |
| What's Included | ||
|
||
