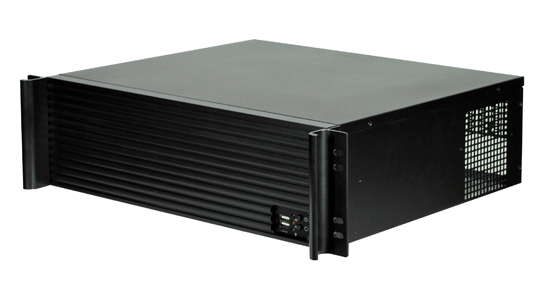

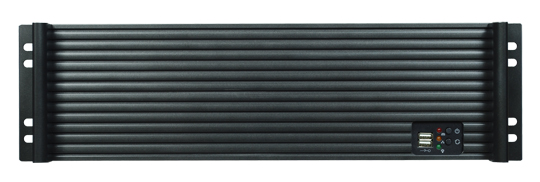

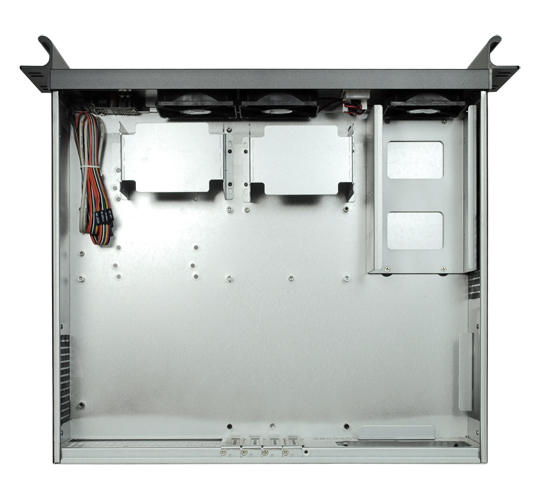

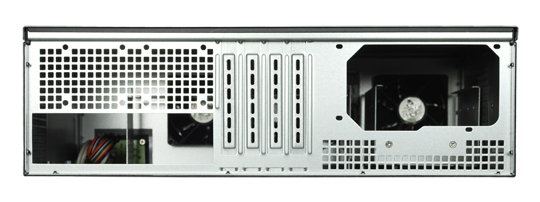

3U Short Depth Chassis with aluminium Louver front up to 9 x 3.5" HDD
Key Product Features:
- 3U Rackmount Form Factor
- 380mm Chassis Depth
- 430mm Chassis Width
- 133mm Chassis Height
- Standard ATX PSU Compatibility
- Standard ATX M/B Form Factor
- 8 Fixed Bays - Internal - 3.5"
- 4 Full Height PCI Expansion Slots
Product Code/SKU: SC-3380
Buy Now
Server Case
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-3380 from Server Case UK
Call: 01283 576162 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 3U Rackmount | |
| Motherboard Compatibility |
Supports ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboards |
|
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 7 (8 if using Mini-ITX motherboard) | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 4 |
| Low Profile | 0 | |
| Cooling | 3 x 80mm | |
| Power Supply Form Factor | Supports ATX PSU | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 15" x 5.25" (483mm x 380mm x 133mm) | |
| Weight | 10 kg (Approx) | |
| What's Included | ||
|
||
