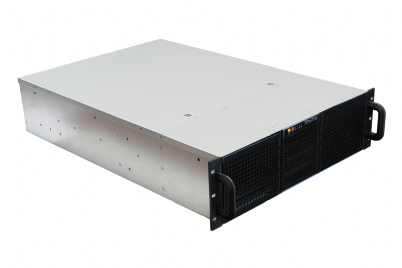

3U Standard Chassis 14 x 3.5" HDD

Key Product Features:

  • 3U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 133mm Chassis Height
  • Standard ATX PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 14 Fixed Bays - Internal - 3.5"
  • 5 Full Height PCI Expansion Slots
Product Code/SKU: SC-39650G-ATX
3U Standard Chassis 14 x 3.5
Photo 1
Photo 2

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-39650G-ATX from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 3U Rackmount
Motherboard Compatibility Supports EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" x 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 14 (Can be modified to have 10 x 3.5" Hot Swap, and 4 x 3.5" internal using the SC-H500 Caddy)
Internal 2.5" 0
Hotswap 3.5" Can be modified to have 10 x 3.5" Hot Swap, and 4 x 3.5" internal using the SC-H500 Caddy.
Hotswap 2.5" Can be modified to have 8 x 3.5" Hot Swap, 1 x 5.25" and 4 x 3.5" internal HDD using 1 x SC-H300 and 1 x SC-H500 Caddy.
Slim Optical Can be modified to have 9 x internal 3.5" HDD and 3 x 5.25" Optical drive bays.
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 5
Low Profile 0
Cooling 2 x 60mm rear exhaust fans, 4 x 80mm hot swap fans in centre fan wall plus 2 x 120mm front fans.
Power Supply Form Factor Standard ATX (rear mounted) must have 80mm fans.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 25.6" x 5.1" (483mm x 650mm x 133mm)
Weight 14 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
