Rack Mountable Server Chassis Case 3U 450MM Short Depth for full size ATX MB

Key Product Features:

  • 3U Rackmount Form Factor
  • 450mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 7 Fixed Bays - Internal - 3.5"
  • 5 Full Height PCI Expansion Slots
Product Code/SKU: SC-3450
Rack Mountable Server Chassis Case 3U 450MM Short Depth for full size ATX MB

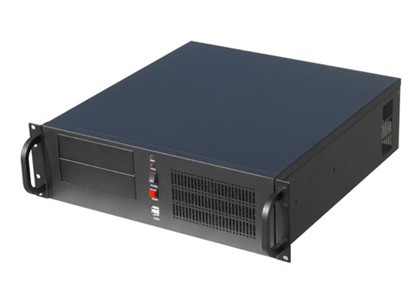

Photo 1
Photo 2
Photo 3
Photo 4

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-3450 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 3U Rackmount
Motherboard Compatibility Support ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 7
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" Additional 3 x 3.5" Hot Swap HDD available using SC-H300 instead of the 2 x 5.25" Drive Bays
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 5
Low Profile 0
Cooling 2 x 80mm Front Fans + 2 x rear ball bearing fans
Power Supply Form Factor Standard ATX, PS/2 supply
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 17.7" x 5.23" (483mm x 450mm x 133mm)
Weight 11 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
