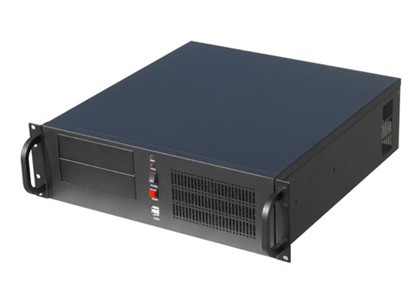

Rack Mountable Server Chassis Case 3U 450MM Short Depth for full size ATX MB
Rack Mountable Server Chassis Case 3U 450MM Short Depth for full size ATX MB
| PRODUCT CODE | SKU: SC-3450 |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 3U Rackmount | |
| Motherboard Compatibility | Support ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") | |
| Drive Bays |
External 5.25" |
2 |
| External 3.5" | 0 | |
| Internal 3.5" | 7 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | Additional 3 x 3.5" Hot Swap HDD available using SC-H300 instead of the 2 x 5.25" Drive Bays | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 5 |
| Low Profile | 0 | |
| Cooling | 2 x 80mm Front Fans + 2 x rear ball bearing fans | |
| Power Supply Form Factor | Standard ATX, PS/2 supply | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 17.7" x 5.23" (483mm x 450mm x 133mm) | |
| Weight | 11 kg (Approx) | |
| What's Included | ||
|
||
