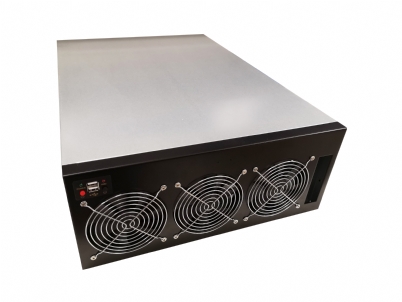

4U Mining Server Chassis - 8x Double Width GPU Support - Excellent Cooling - Single ATX PSU Support

Key Product Features:

  • 4U Rackmount Form Factor
  • 610mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - Internal - 2.5"
  • 8 Full Height PCI Expansion Slots
Product Code/SKU: SC-D600-8GPU
4U Mining Server Chassis - 8x Double Width GPU Support - Excellent Cooling - Single ATX PSU Support
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-D600-8GPU from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Note: Chassis does not include rack handles or rack rail options. If installed in a cabinet a cabinet shelf is required.
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 2 (or Single 3.5")
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 8 (Double Width GPU)
One GPU has Front Accessible
GPU Adapters/Connectors Not Included.
Low Profile 0
Cooling 3x Front 120mm High Airflow - Molex Power
4x Rear 80mm High Airflow - Molex Power
Power Supply Form Factor Single ATX - Supports Large/Long Depth/High Wattage
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 610mm Depth X 430mm Width X 177mm Height
Weight 6kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
