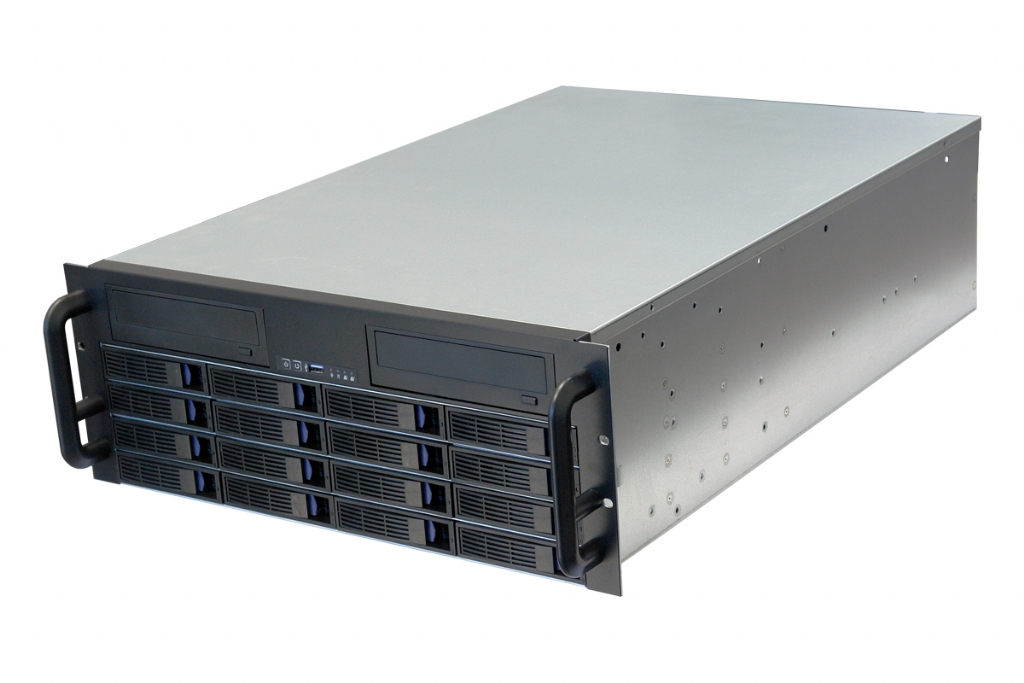

4U Server Case w/ 16 x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12Gb/s HD MiniSAS + 2 x 5.25" Bays

Key Product Features:

  • 4U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 16 Hot-Swap Bays - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4316
4U Server Case w/ 16 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4316 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

2 (If no 5.25" Drives are required these areas can be used for 2 x 3.5" HDD or up to 8 x 2.5" HDD)
External 3.5" 16
Internal 3.5" 0
Internal 2.5" To add 2 x 2.5" HDD/SSD or 1 x 3.5" internal drives use bracket SC-BKT-006
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Four SFF-8643 Connectors - Support 16x 6Gbps SATA HDD/SSD or 12Gbps SAS Drives
Expansion Slots Full Height 7
Low Profile 0
Cooling 3 x 120mm middle fans wall
2 x 80mm rear fans
Power Supply Form Factor Standard ATX
Mini Redundant (Note Requires Optional Bracket)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 1
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 25.5" x 7.0" (483mm x 650mm x 176mm) Fits in standard 19" rack cabinet
Weight 18.4 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
