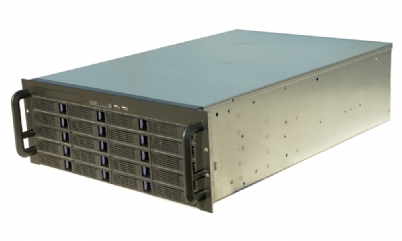

4U Server Case w/ 20 x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS + 1 x slim optical drive 550mm deep

Key Product Features:

  • 4U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 2 Fixed Bays - Internal - 3.5"
  • 20 Hot-Swap Bays - 3.5"
  • 1 Slim ODD
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4320S
4U Server Case w/ 20 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4320S from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications





Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Support CEB (12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 20
Hotswap 2.5" 0
Slim Optical 1
Slim FDD 0
Hot-Swap Backplane Five internal SFF-8087 Mini SAS connectors support up to twenty 6Gb/s 3.5" or 2.5" SATA (II or III) or SAS (II or III) hard drives / SSD's
Expansion Slots Full Height 7
Low Profile 0
Cooling 2 x 80mm rear exhaust fans (+ 1 additional 80mm rear exhaust if using 2U redundant supply). includes internal Fan wall
Power Supply Form Factor Standard ATX power supply, mini redundant power supply, 3U redundant Supply, 2U redundant supply.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 21.65" x 7.0" (483mm x 550mm x 176mm)
Weight 18 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
