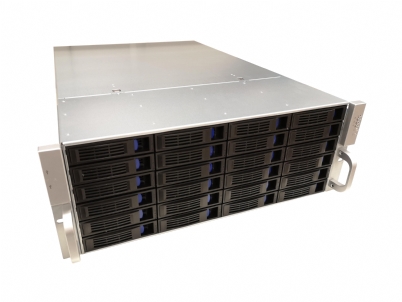

4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12G Backplane
Key Product Features:
- 4U Rackmount Form Factor
- 650mm Chassis Depth
- 430mm Chassis Width
- 176mm Chassis Height
- 4U Mini Redundant PSU Compatibility
- EEB (12" x 13") M/B Form Factor
- 24 Hot-Swap Bays - 3.5"
- 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4324
Buy Now
Server Case UK Ltd
Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
Buy Logic Case SC-4324 from Server Case UK
Call: 0800 652 1649 | Email: [email protected] | Website: www.servercase.co.uk
Specifications
| Technical Details | ||
|---|---|---|
| Case Form Factor | 4U Rackmount | |
| Motherboard Compatibility | Support EEB (12"x13"), CEB (12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 0 | |
| Internal 2.5" | 2 | |
| Hotswap 3.5" | 24 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane |
Six internal SFF-8643 HD Mini SAS connectors support up to twenty-four 6Gb/s 3.5" or 2.5" SATA (II or III) or SAS 6 or 12Gb/s hard drives |
|
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |
| Cooling | 3x 120mm High CFM Hot-Swap Fans (Middle Fan Wall) 2x 80mm Fans (Rear) |
|
| Power Supply Form Factor | Standard ATX PS2 power supply or mini redundant ATX power supply, 3U redundant and 2U redundant power supply's. | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 25.5" x 7.0" (483mm x 650mm x 176mm) | |
| Weight | 20 kg (Approx) | |
| What's Included | ||
|
||
