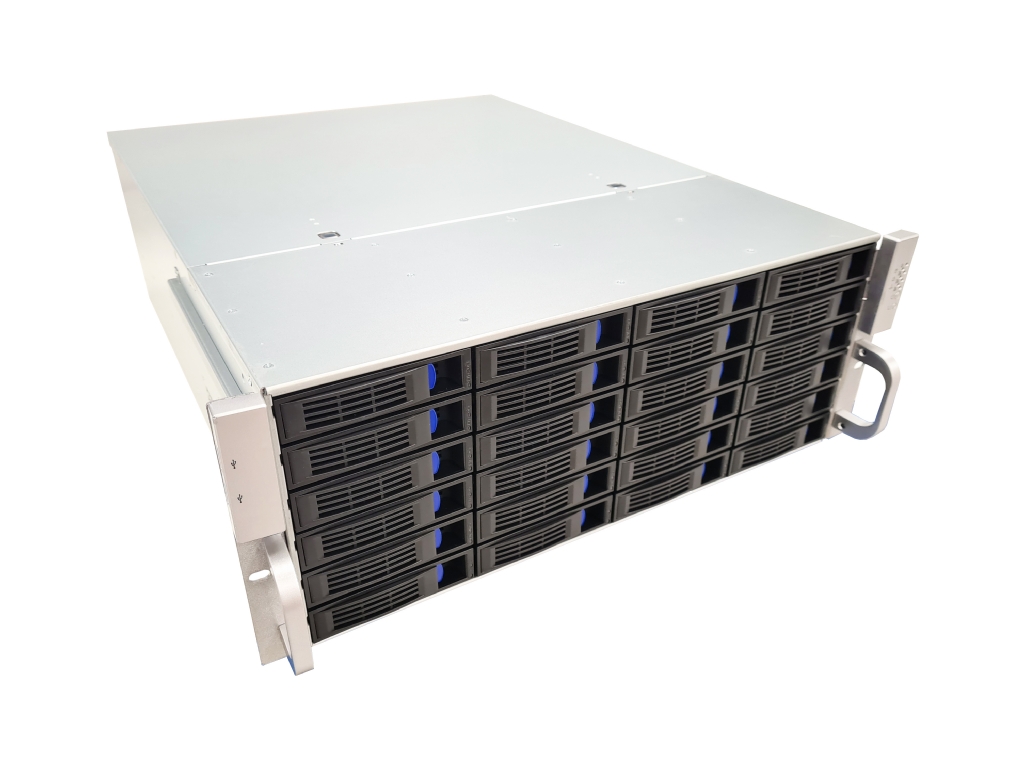

4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12Gb/s HD MiniSAS 550mm deep

4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12Gb/s HD MiniSAS 550mm deep

PRODUCT CODE SKU: SC-4324S
KEY PRODUCT FEATURES:
  • 4U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 24 Hot-Swap Bays - 3.5"
  • 7 Full Height PCI Expansion Slots
servercase-logo

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

01283 576162 | [email protected]

www.servercase.co.uk

BUY SC-4324S NOW shopping-icon
  • Reliable and fast service Reliable and fast service
  • Global distribution Global distribution
  • High quality & affordable High quality & affordable
  • Stock held in UK Stock held in UK
logo-icon
Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX (12x 10.5" Max)
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 1x (or 2x 2.5")
Internal 2.5" 2x (or 1x 3.5")
Hotswap 3.5" 24
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane

Six internal SFF-8643 HD Mini SAS connectors support up to twenty-four 6Gb/s 3.5" or 2.5" SATA (II or III) or SAS 12Gb/s hard drives

Expansion Slots Full Height 7
Low Profile 0
Cooling 3x 120mm High CFM Hot-Swap Fans (Middle Fan Wall - Molex Power Input)
2x 80mm 3-Pin Fans (Rear)
Power Supply Form Factor Standard ATX PSU
Mini Redundant PSU (Note Additional Bracket Required)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver Chassis
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 21.65" x 7.0" (483mm x 550mm x 176mm)
Weight 18.85 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
