4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS

Key Product Features:

  • 4U Rackmount Form Factor
  • 680mm Chassis Depth
  • 430mm Chassis Width
  • 177mm Chassis Height
  • Standard ATX PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - Internal - 2.5"
  • 24 Hot-Swap Bays - 3.5"
  • 24 Hot-Swap Bays - 2.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4024
4U Server Case w/ 24x 3.5

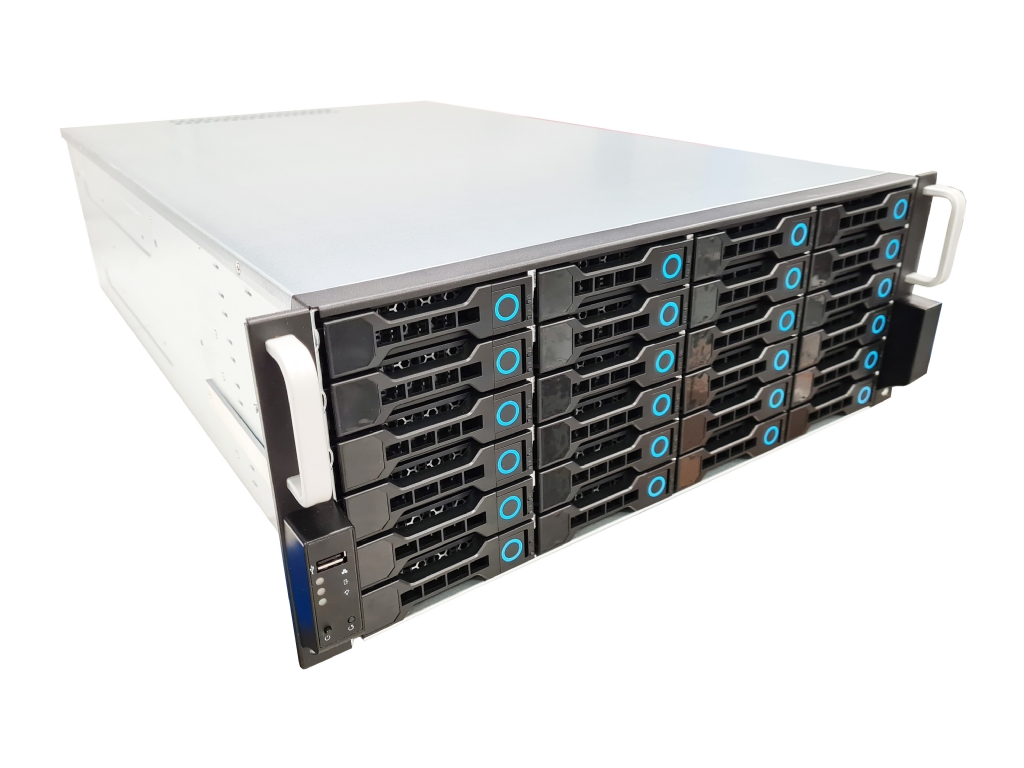

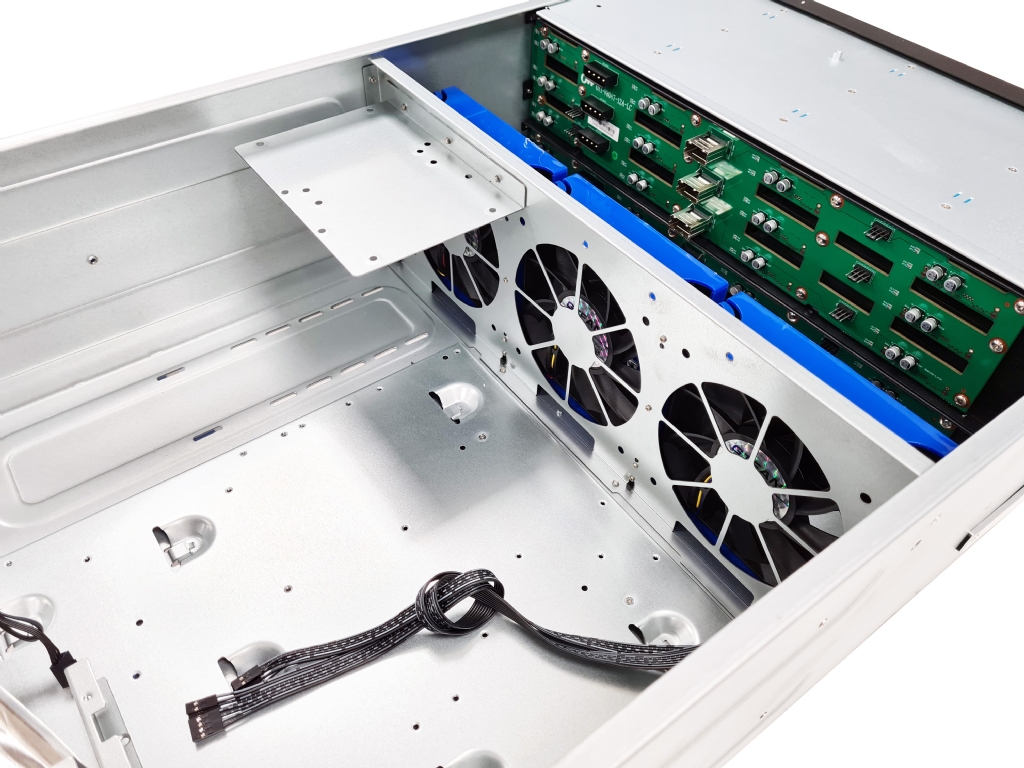

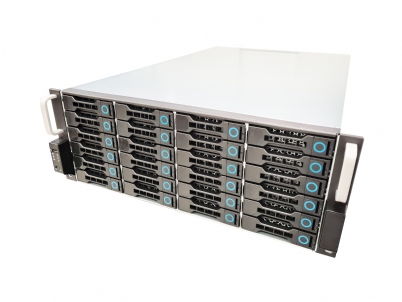

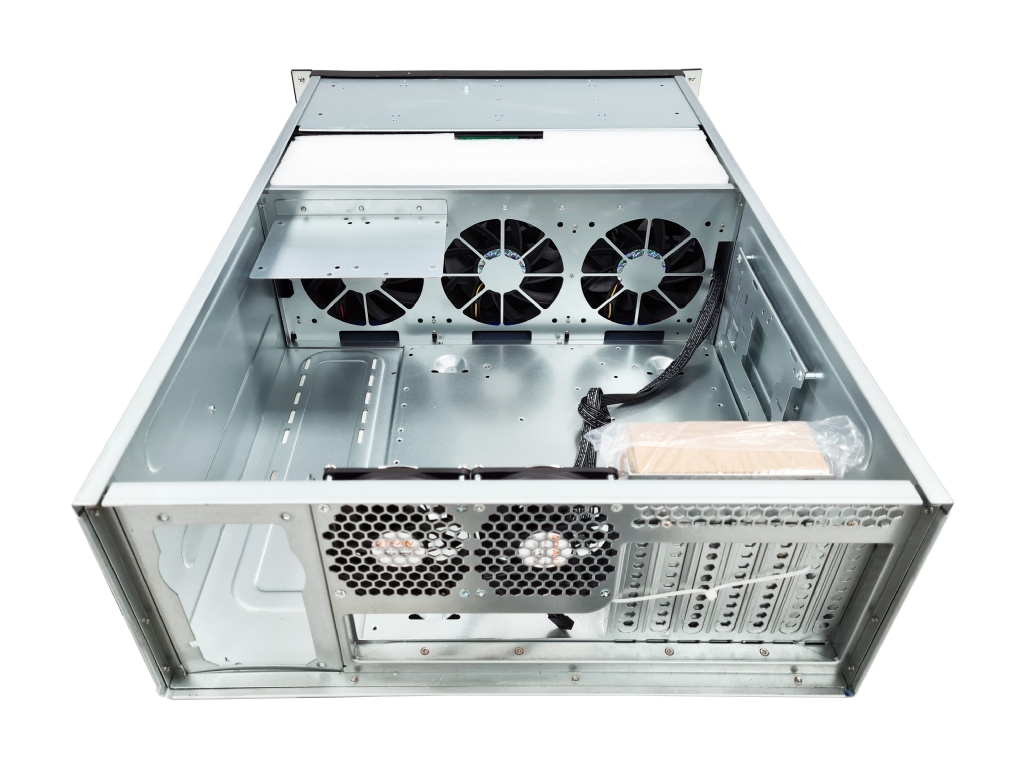

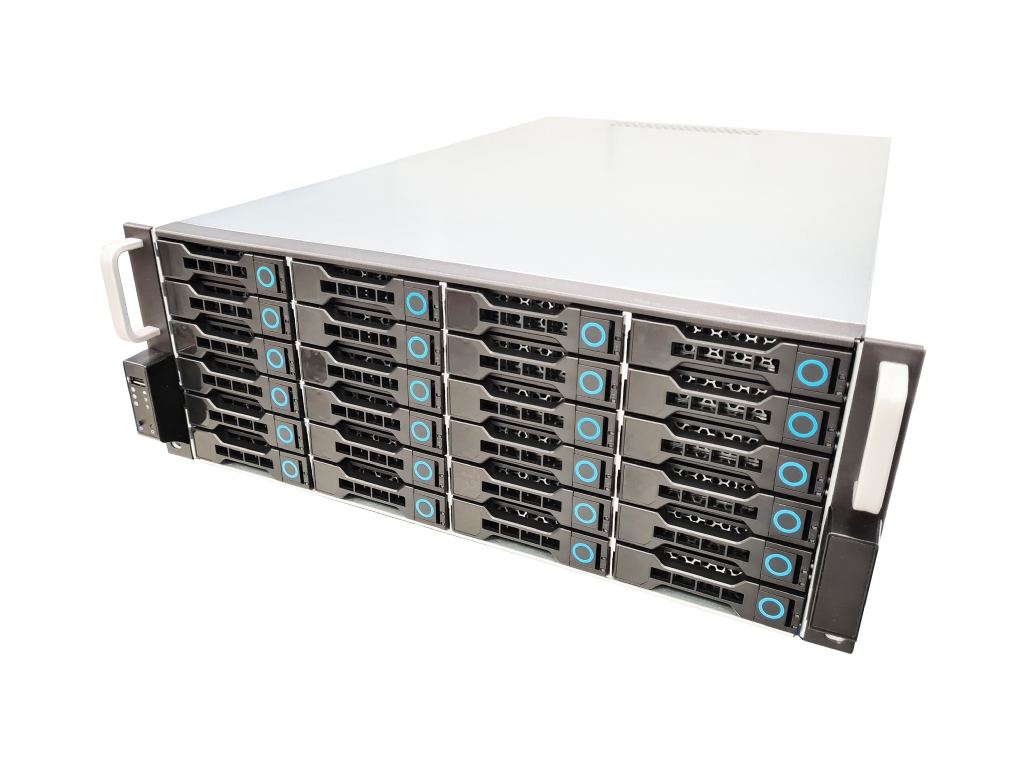

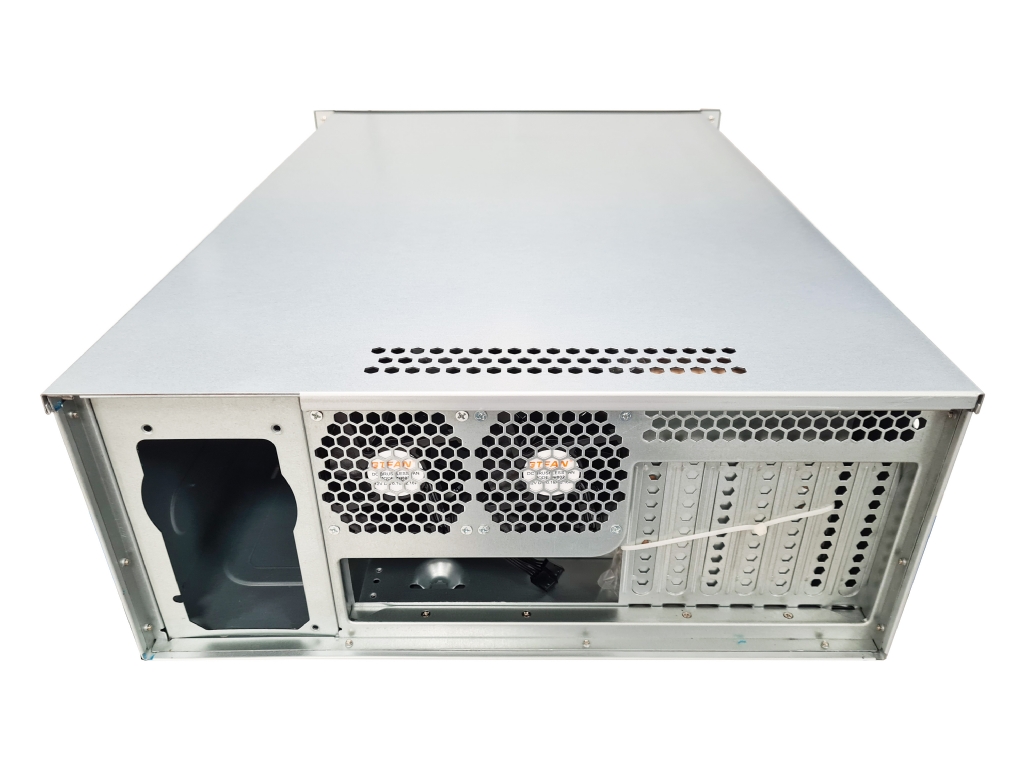

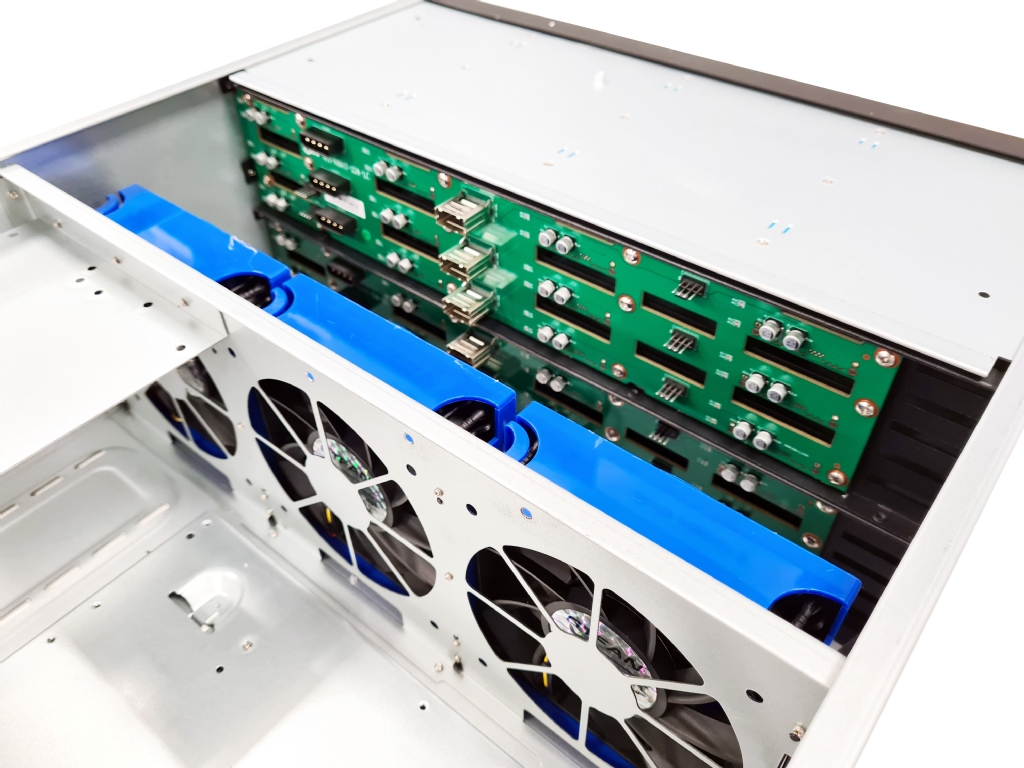

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4024 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility All Standard ATX Motherboards Up to
12” x 13” (EEB ATX)
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 2
Hotswap 3.5" 24 (or 24x 2.5")
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 6x 6Gbps MiniSAS (SFF-8087) Connectors
Expansion Slots Full Height 7
Low Profile 0
Cooling 3x 120mm Middle Hot-Swap High CFM PWM Fans
2x 80mm Rear High CFM PWM Fans
Power Supply Form Factor Compatible with Standard ATX PSU
Mini Redundant ATX PSU
CRPS 2U Redundant PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 680 X 430 X 177mm
Weight 25 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
