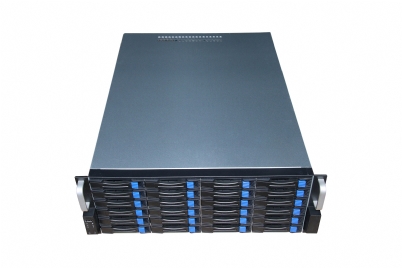

4U Server Case w/ 24x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS

Key Product Features:

  • 4U Rackmount Form Factor
  • 590mm Chassis Depth
  • 430mm Chassis Width
  • 177mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 24 Hot-Swap Bays - 3.5"
  • 24 Hot-Swap Bays - 2.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4824S
4U Server Case w/ 24x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4824S from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility All Standard ATX Motherboards Up to
12” x 10.5” (CEB ATX)
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 2
Internal 2.5" 0
Hotswap 3.5" 24
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 6x 6Gbps MiniSAS (SFF-8087) Connectors
Expansion Slots Full Height 7
Low Profile 0
Cooling 3 x 120mm ball-bearing (Middle Fan Wall) 2 X 80mm (Rear Exhaust)
Power Supply Form Factor ATX
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 590 X 430 X 177mm
Weight 25 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
