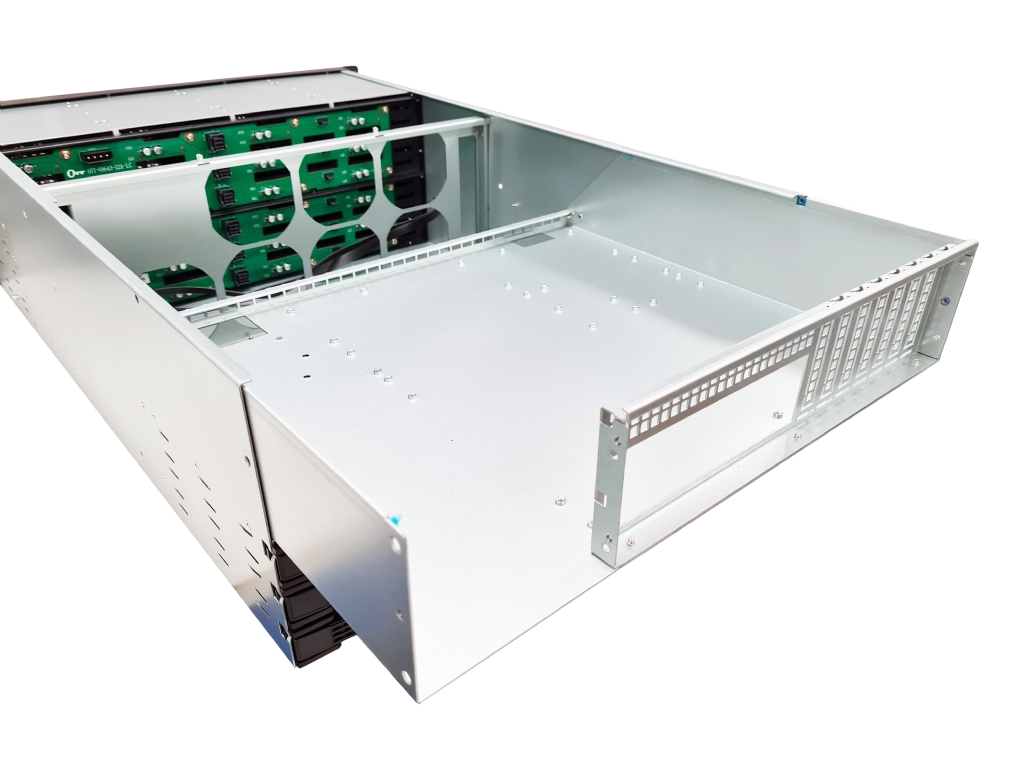

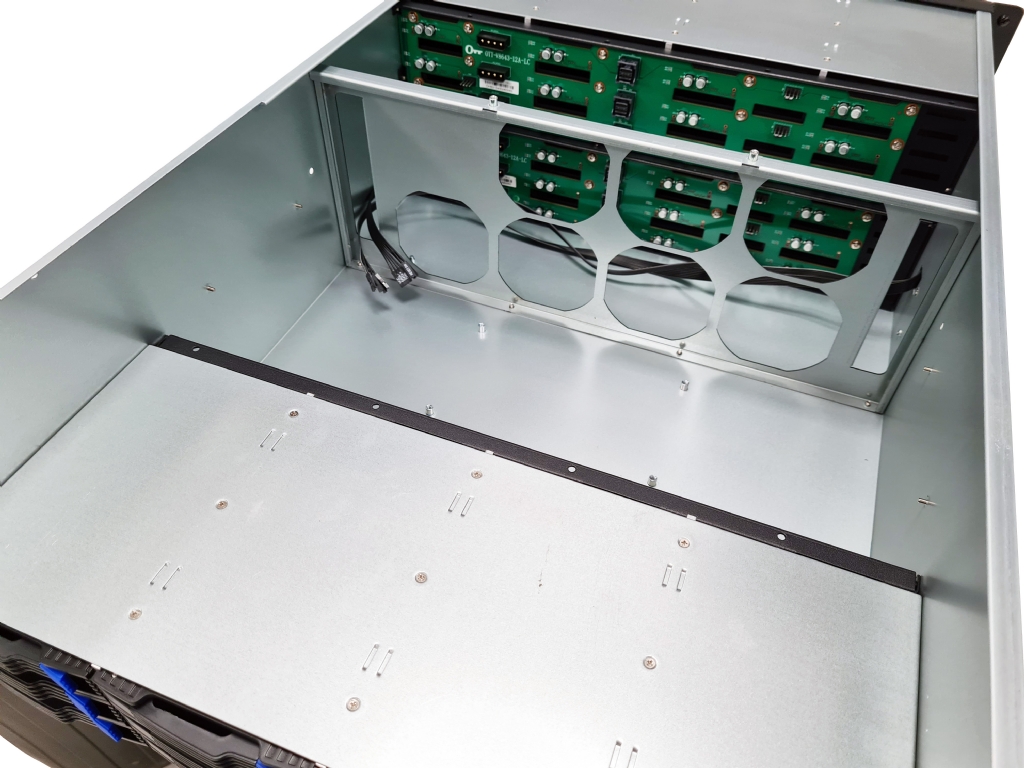

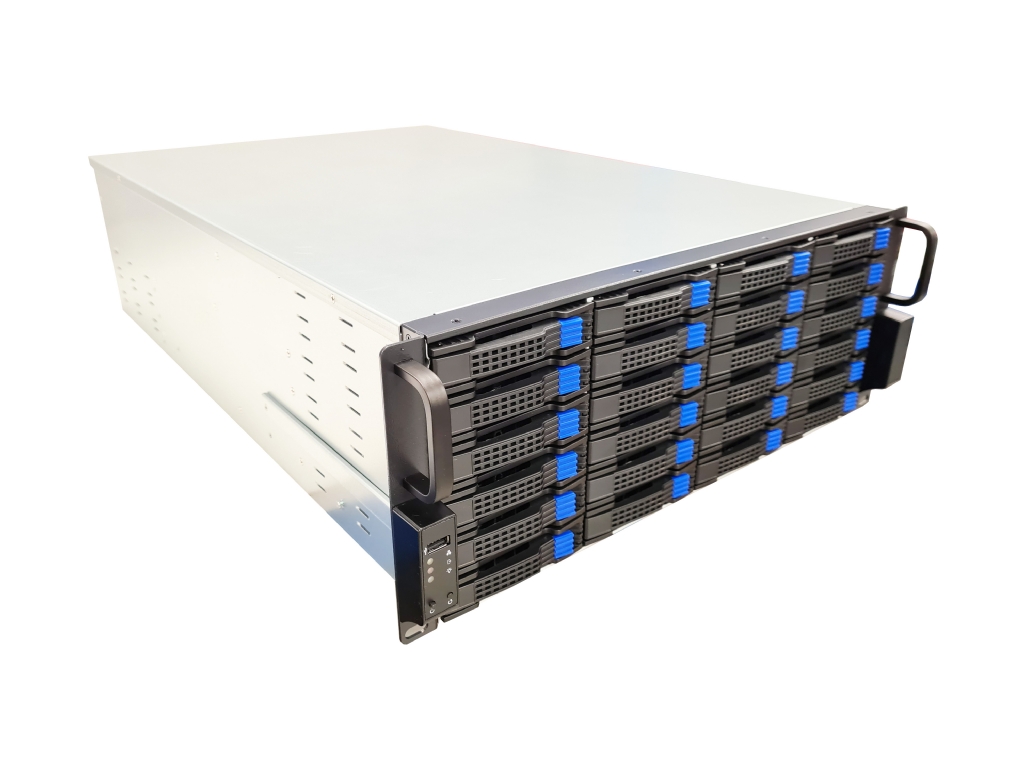

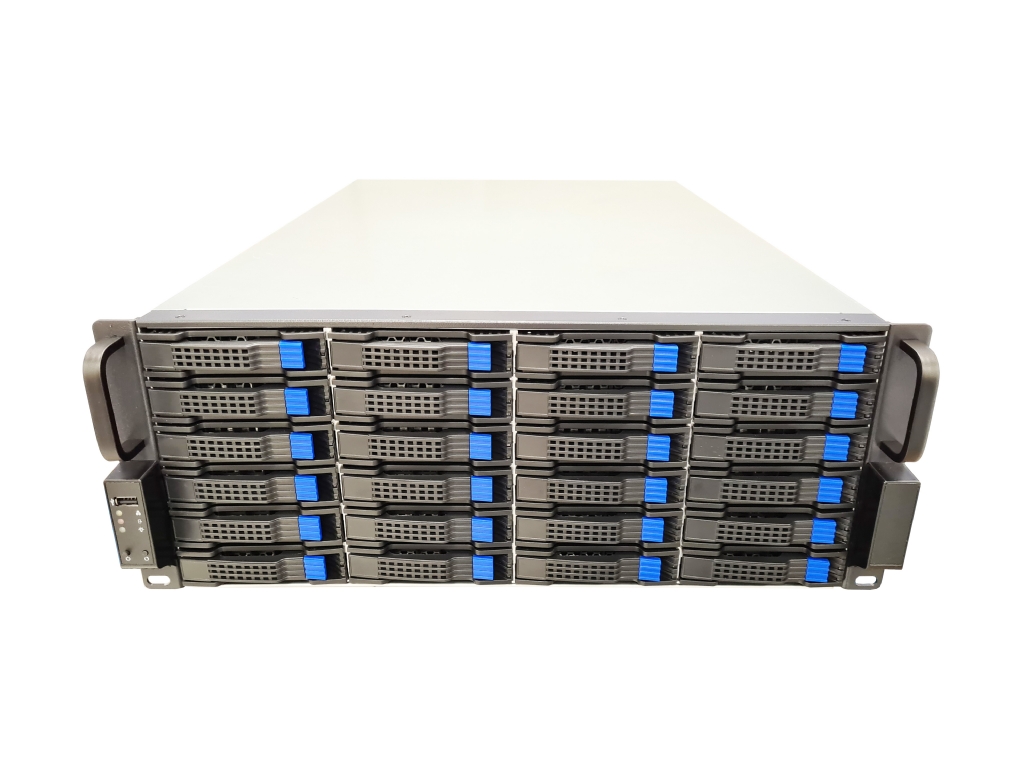

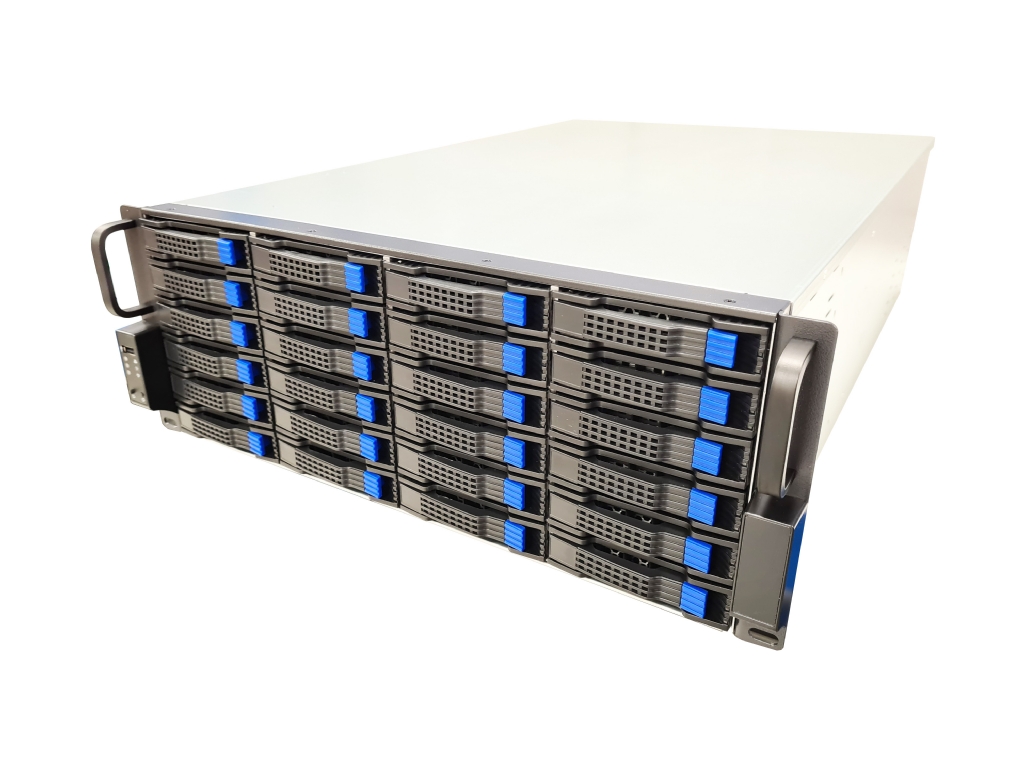

4U Server Case w/ 36x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12G Backplane

Key Product Features:

  • 4U Rackmount Form Factor
  • 680mm Chassis Depth
  • 430mm Chassis Width
  • 177mm Chassis Height
  • 2U Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 2 Fixed Bays - Internal - 2.5"
  • 24 Hot-Swap Bays - 3.5"
  • 32 Hot-Swap Bays - 2.5"
  • 7 Low Profile PCI Expansion Slots
Product Code/SKU: SC-4336
4U Server Case w/ 36x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8
Photo 9
Photo 10
Photo 11

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4336 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX, Extended ATX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 2

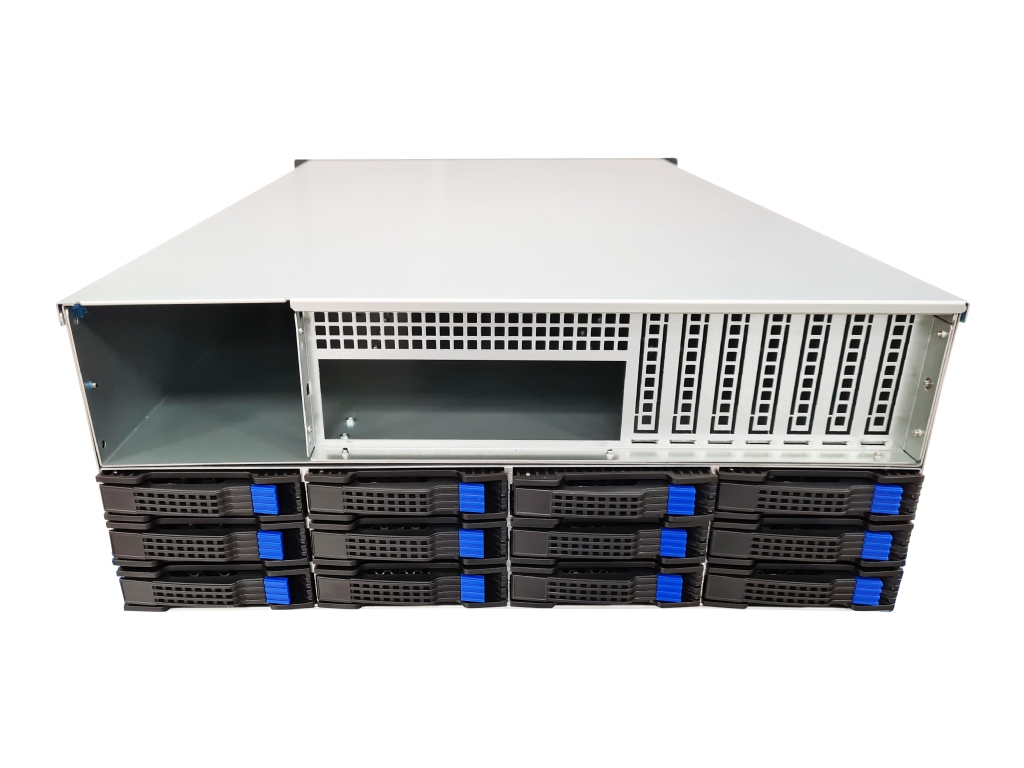

Hotswap 3.5" 36 (24x Front, 12x Rear)
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0

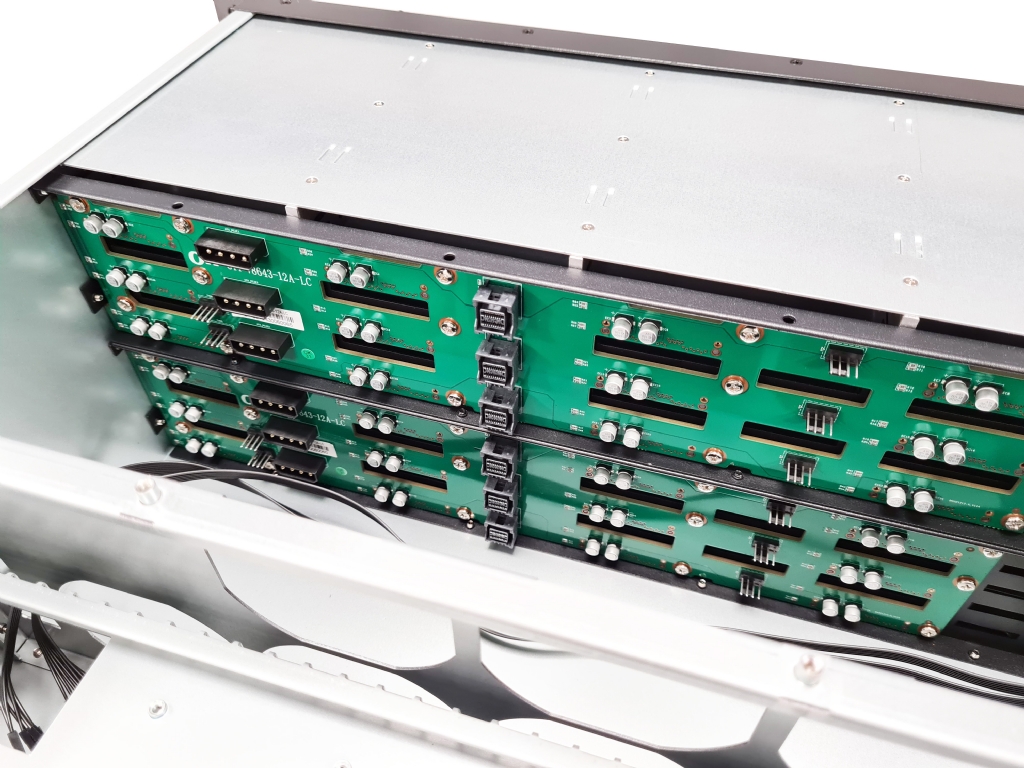

Hot-Swap Backplane Front Backplane
24x 3.5"/2.5" SATA/SAS Hot-Swap 12Gbps Backplane with 6x HD MiniSAS (SFF-8643) Connectors

Rear Backplane
12x 3.5"/2.5" SATA/SAS Hot-Swap 12Gbps Backplane with 3x HD MiniSAS (SFF-8643) Connectors
Expansion Slots Full Height 0
Low Profile 7

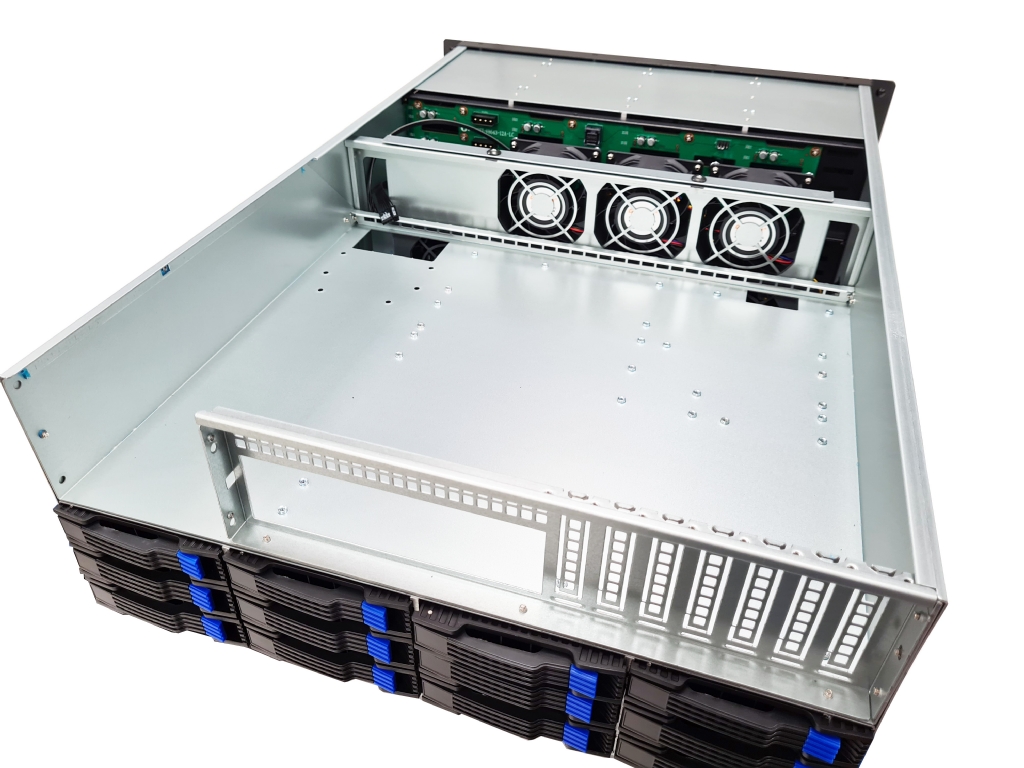

Cooling 7x 80mm High CFM PWM Fans
Fan Enclosure with Easy-Removal
Power Supply Form Factor 2U Redundant PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 1
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 680 X 430 X 177mm (D x W x H mm)
Weight 23kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
