4U Short Chassis 10x 3.5" HDD + 3 x 5.25" Bays

Key Product Features:

  • 4U Rackmount Form Factor
  • 480mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • Standard ATX M/B Form Factor
  • 3 Fixed Bays - External - 5.25"
  • 10 Fixed Bays - Internal - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-43480B
4U Short Chassis 10x 3.5

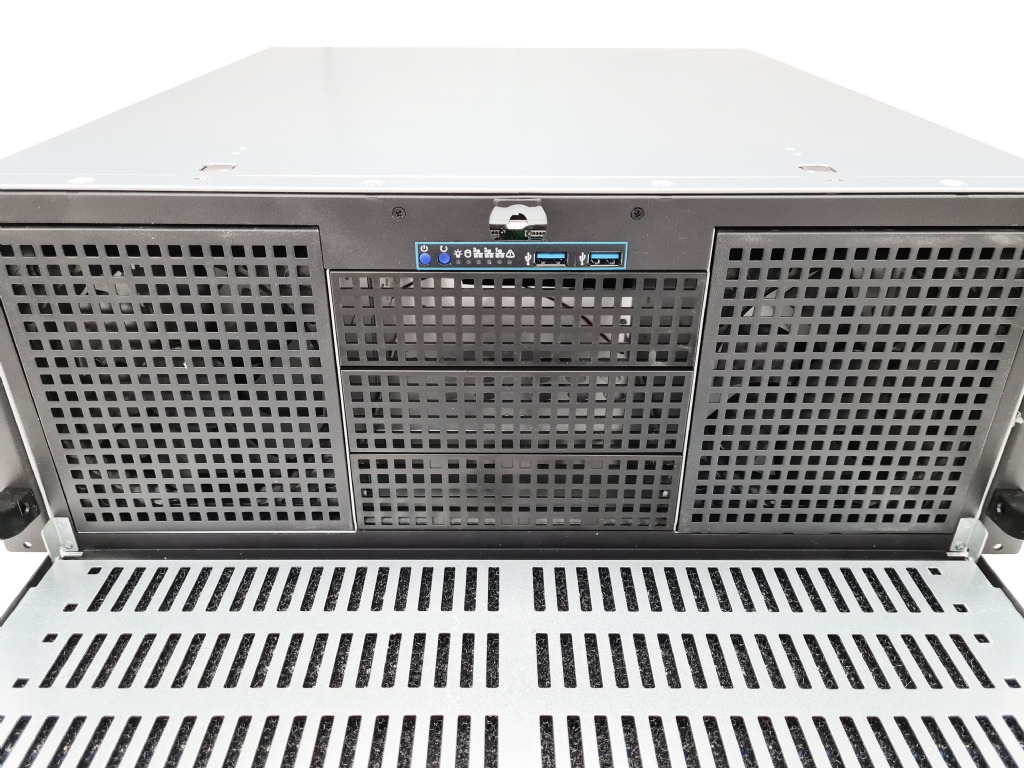

Photo 1

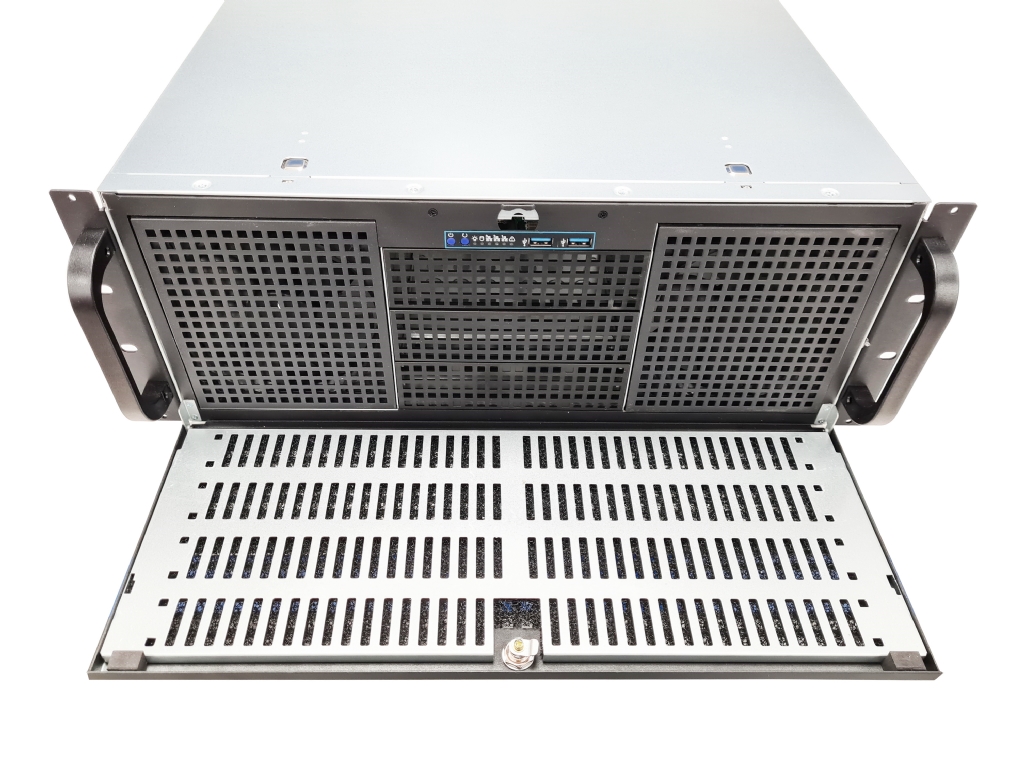

Photo 2

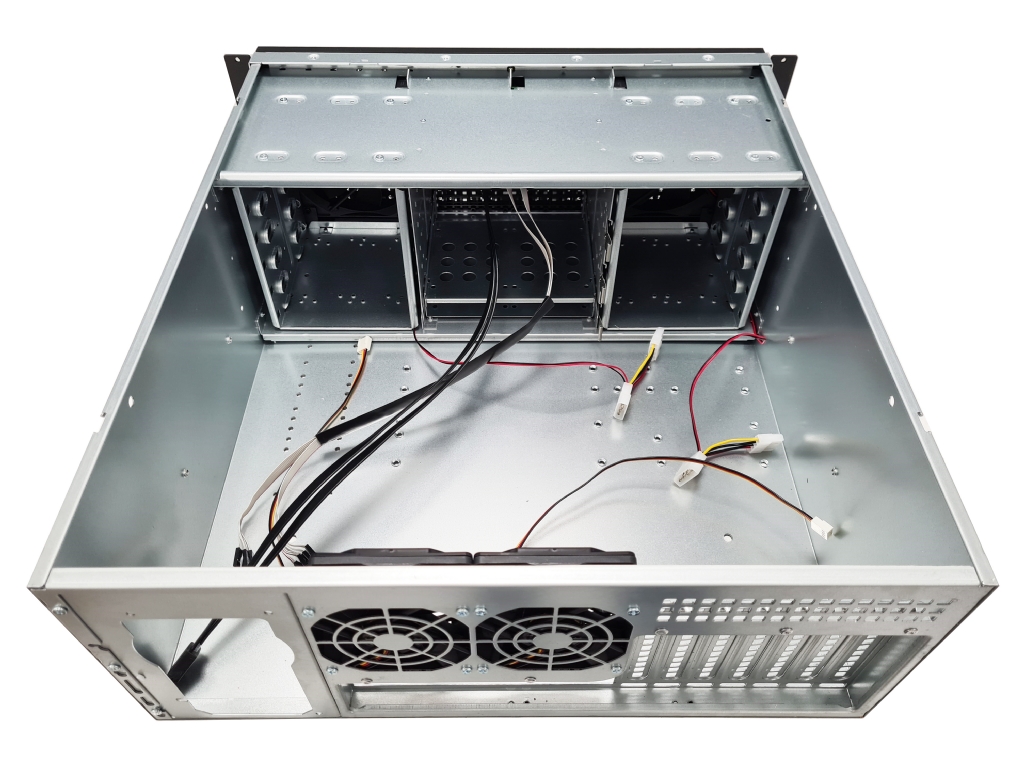

Photo 3

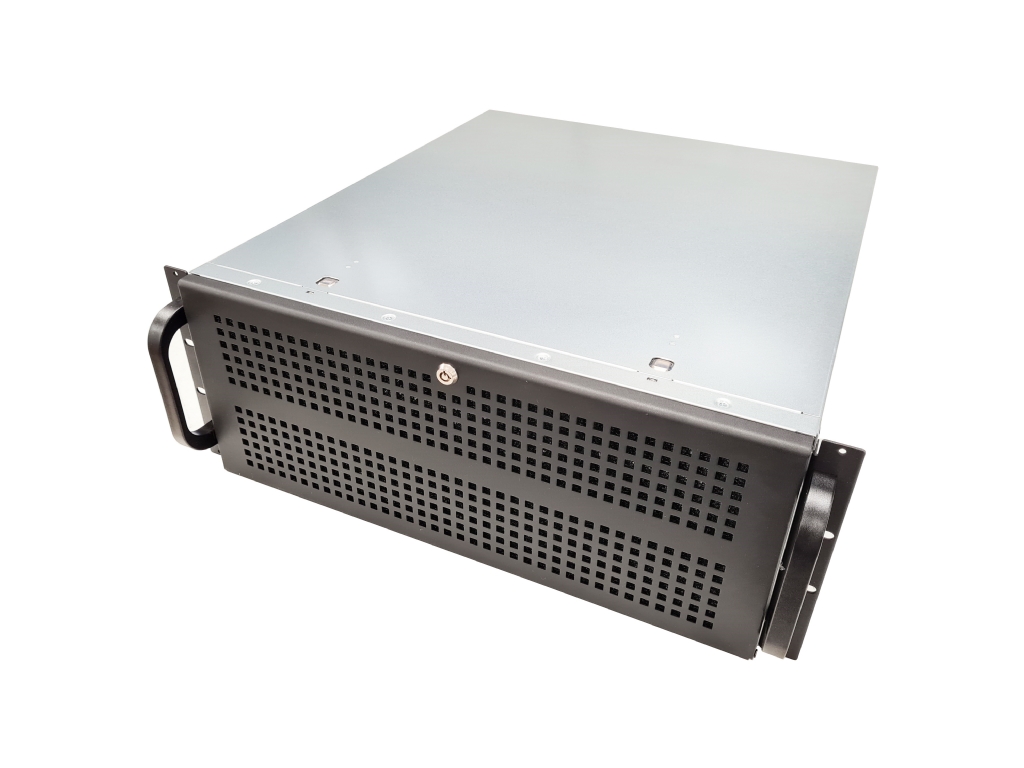

Photo 4

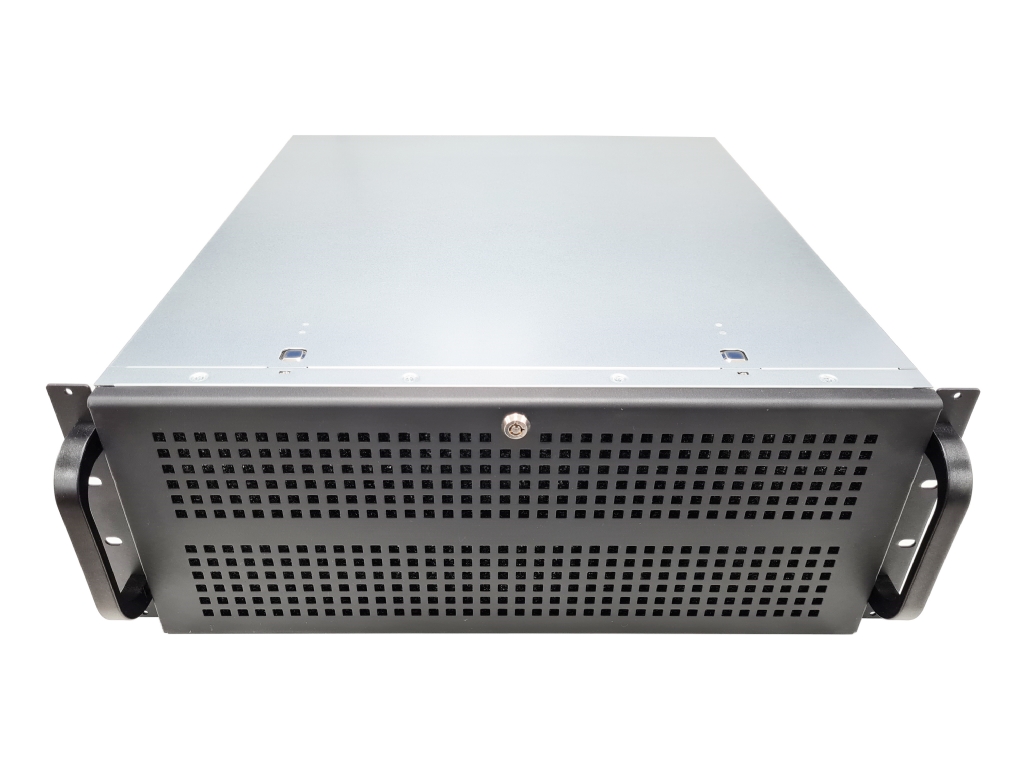

Photo 5

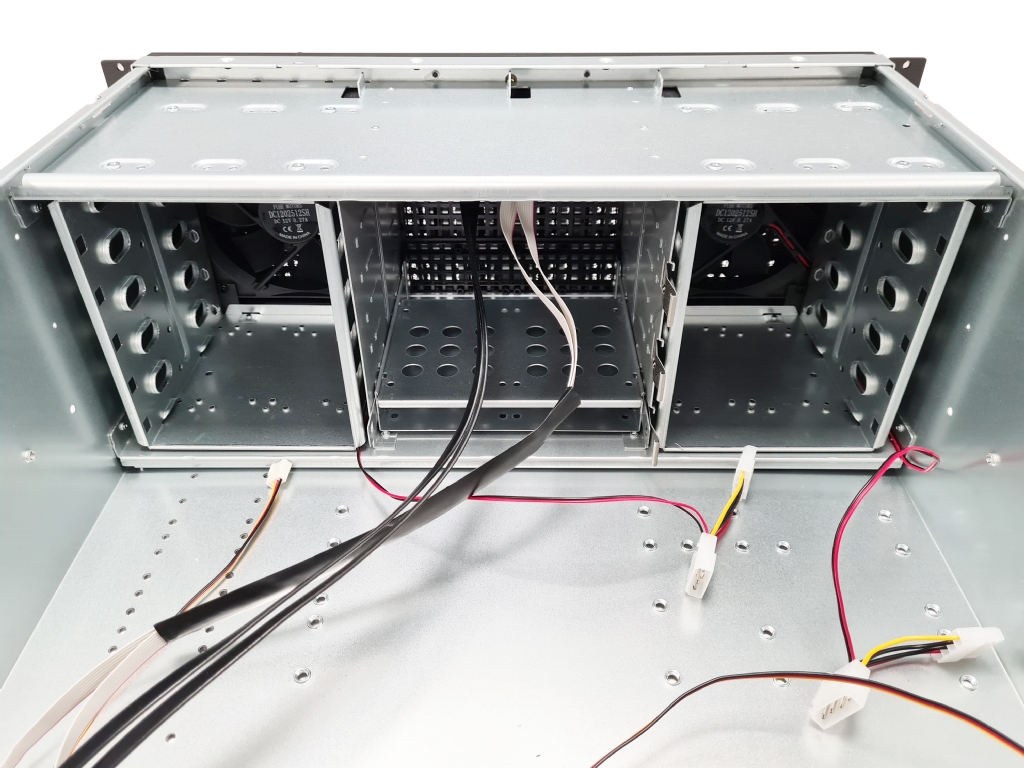

Photo 6

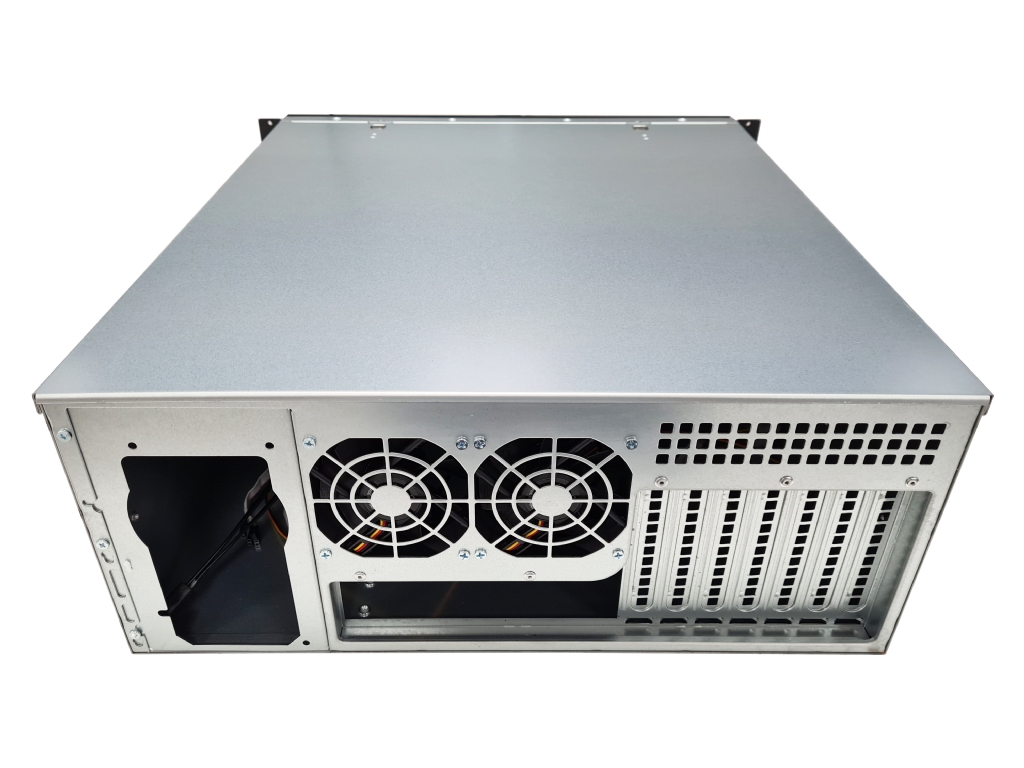

Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-43480B from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications





Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Supports ATX (12"x9.6"), Micro ATX (9.6" x 9.6")  With optional fan wall fitted supports Mini ITX (6.7" x 6.7")
Drive Bays

External 5.25"

3
External 3.5" 0
Internal 3.5" 10
Internal 2.5" Additional 3 x 3.5" Hot Swap HDD available using SC-H300 in the 2 x 5.25" Drives or 5 x 3.5" Hot Swap HDD available using SC-H500 in 3 x 5.25"
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 2 x 120mm front Fans and 2 x 80mm rear ball bearing exhaust fans.  Note: 3 x 120mm fan wall available see SC-BKT-005
Power Supply Form Factor Standard ATX PS2 and Mini Redundant.
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 18.9" x 7" (483mm x 480mm x 176mm)  Fits 19" standard rack cabinet.
Weight 13 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
