4U Short Depth Chassis louvered aluminium front bezel 5 x 3.5"

Key Product Features:

  • 4U Rackmount Form Factor
  • 390mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 4 Fixed Bays - Internal - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-43901
4U Short Depth Chassis louvered aluminium front bezel 5 x 3.5

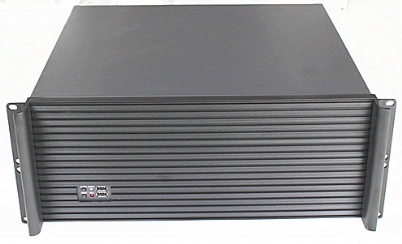

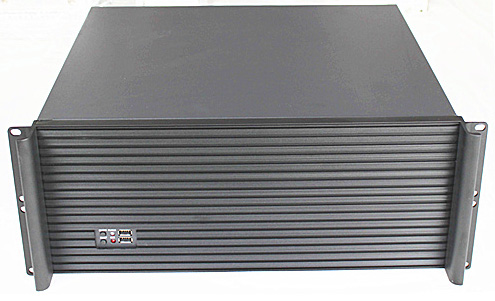

Photo 1

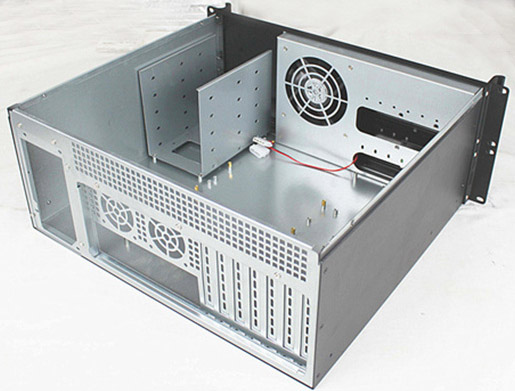

Photo 2

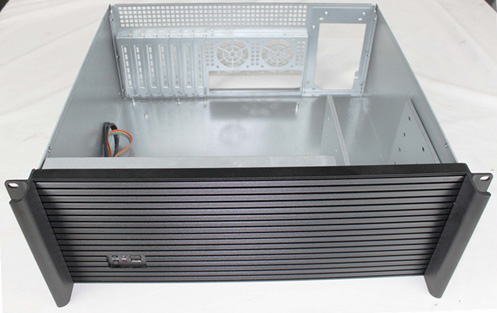

Photo 3

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-43901 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboards
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 5
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 1 x 120mm Front Internal Fans Included, 2 x 60mm Optional Rear Internal Fans
Power Supply Form Factor Standard ATX
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 15" x 6.9" (430mm x 390mm x 176mm)
Weight 9.45 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
