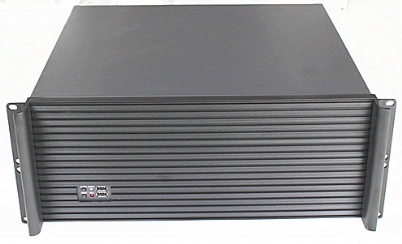

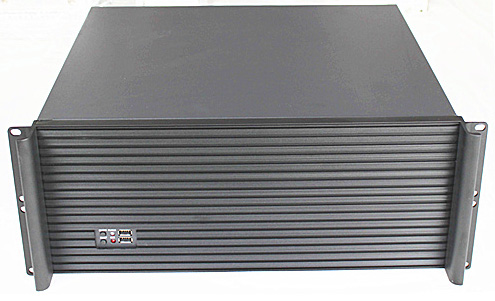

4U Short Depth Chassis louvered aluminium front bezel 5 x 3.5"
4U Short Depth Chassis louvered aluminium front bezel 5 x 3.5"
| PRODUCT CODE | SKU: SC-43901 |
|---|---|
| KEY PRODUCT FEATURES: |
|
Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.
-
Reliable and fast service -
Global distribution -
High quality & affordable -
Stock held in UK
| Technical Details | ||
|---|---|---|
| Case Form Factor | 4U Rackmount | |
| Motherboard Compatibility | CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboards | |
| Drive Bays |
External 5.25" |
0 |
| External 3.5" | 0 | |
| Internal 3.5" | 5 | |
| Internal 2.5" | 0 | |
| Hotswap 3.5" | 0 | |
| Hotswap 2.5" | 0 | |
| Slim Optical | 0 | |
| Slim FDD | 0 | |
| Hot-Swap Backplane | Not Applicable | |
| Expansion Slots | Full Height | 7 |
| Low Profile | 0 | |
| Cooling | 1 x 120mm Front Internal Fans Included, 2 x 60mm Optional Rear Internal Fans | |
| Power Supply Form Factor | Standard ATX | |
| Front Panel Connectors, Switches & Indicators | Power Switch | YES |
| Reset Switch | YES | |
| USB 2.0 | 1 | |
| USB 3.0 | 1 | |
| Serial | 0 | |
| Indicators | Power, LAN, and HDD LEDs | |
| Colour | Black | |
| Material | SGCC | |
| Dimensions & Weights | ||
| Packaging | Single Box | |
| Dimensions | ( W x D x H ): 19" x 15" x 6.9" (430mm x 390mm x 176mm) | |
| Weight | 9.45 kg (Approx) | |
| What's Included | ||
|
||
