4U Short Depth Server Chassis 4x 3.5" HDD - 450mm Depth - High Airflow with Water-Cooling Mounting

Key Product Features:

  • 4U Rackmount Form Factor
  • 450mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 4 Fixed Bays - Internal - 3.5"
  • 1 Fixed Bays - Internal - 2.5"
  • 1 Slim ODD
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4450SG
4U Short Depth Server Chassis 4x 3.5

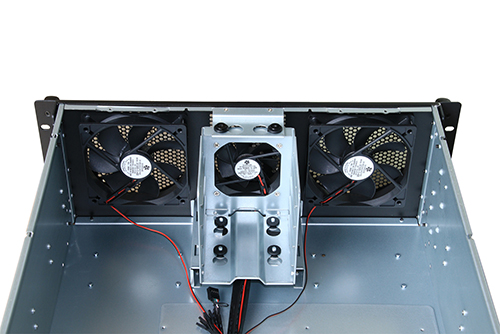

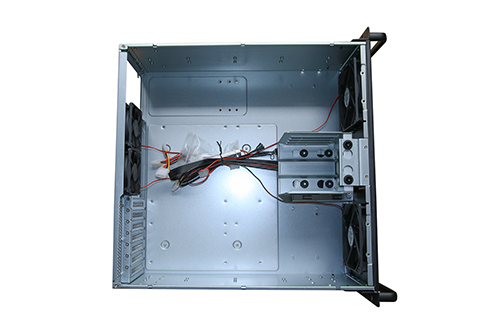

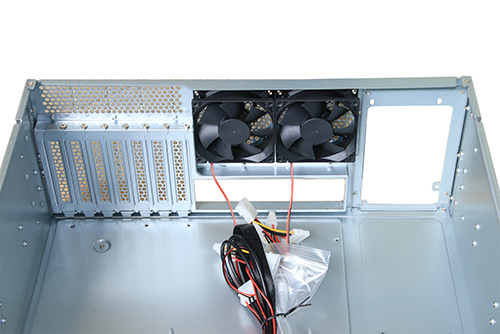

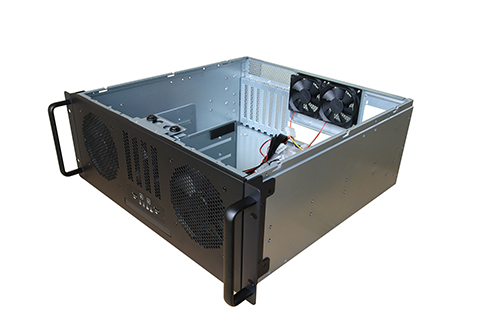

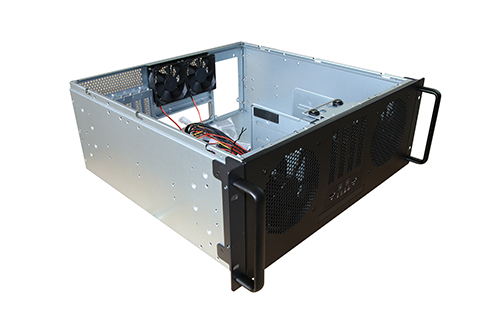

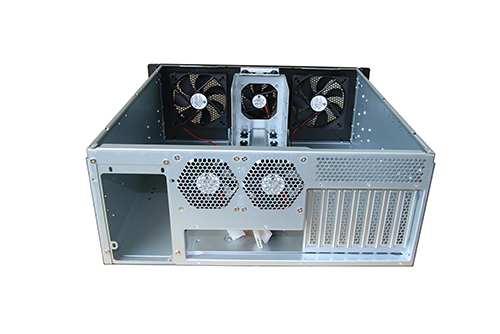

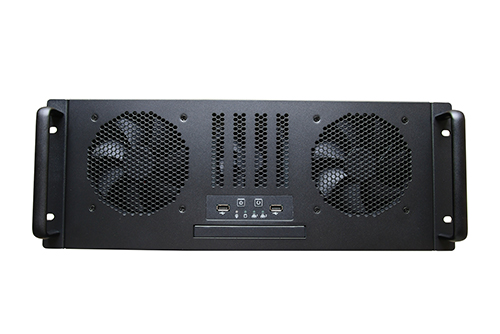

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4450SG from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 4
Internal 2.5" 1 (or Slim Optical)
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 1 (or 2.5" SSD)
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 2x Front 12cm High Airflow
1x Center Mounted 8cm
2x Rear 8cm
Power Supply Form Factor Standard ATX
Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black Facia
Silver Body
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 600L x 550W x 320H mm
Weight 10.6kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
