4U Short Length Server Case w/ 16 x 3.5" Hot-Swappable SATA/SAS Drive Bays, 12Gb/s HD MiniSAS + 2 x 5.25" Bays

Key Product Features:

  • 4U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 16 Hot-Swap Bays - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4316S
4U Short Length Server Case w/ 16 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4316S from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Support ATX (12"x10.5"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 4 (Each 5.25" Blank Enclosure Can House 4x 2.5" Bays)
Hotswap 3.5" 16
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0

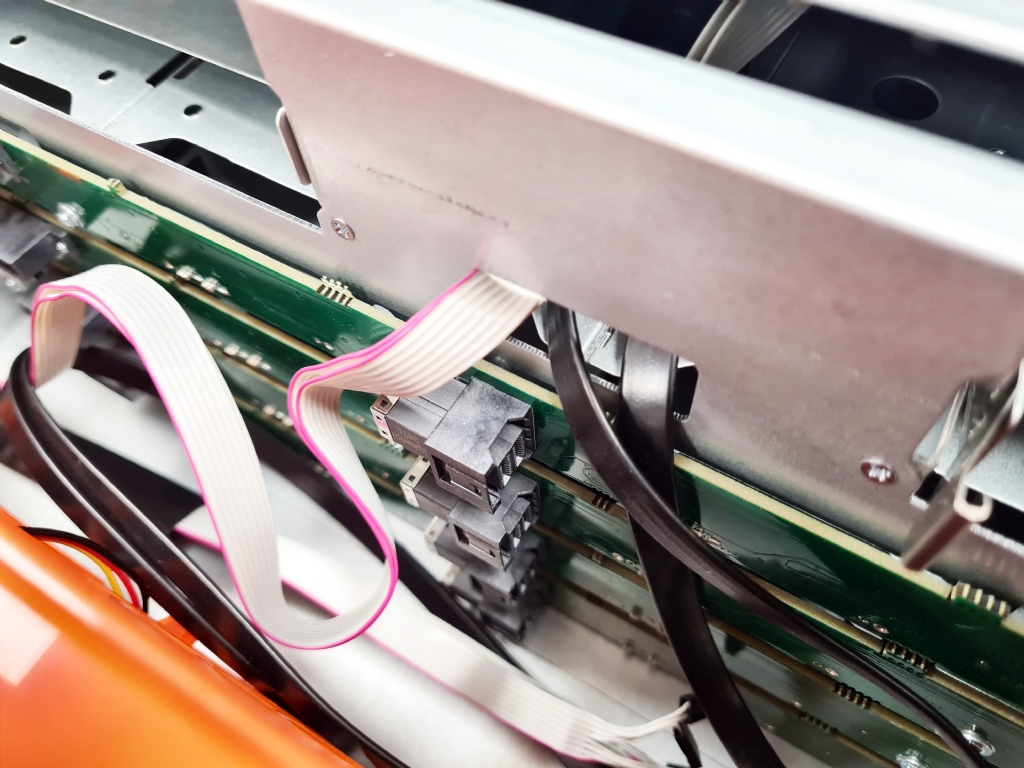

Hot-Swap Backplane Four SFF-8643connectors support up to sixteen 6Gb/s 3.5" or 2.5" SATA (II or III) or 12Gb/s SAS hard drives or SSD's
Expansion Slots Full Height 7
Low Profile 0

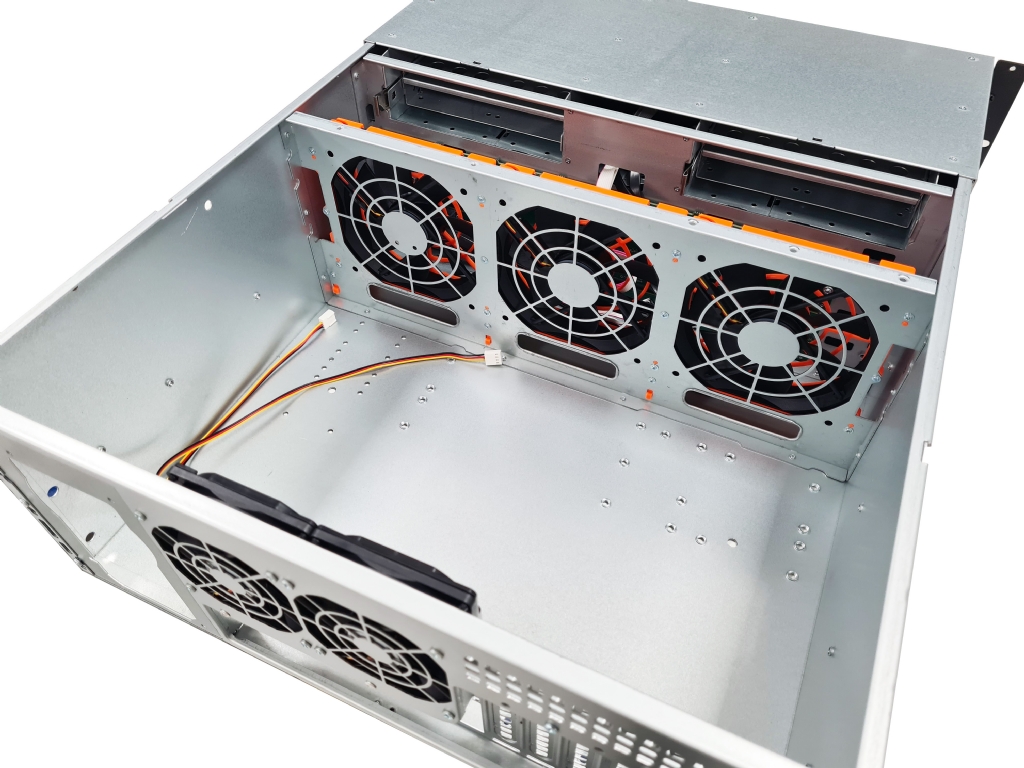

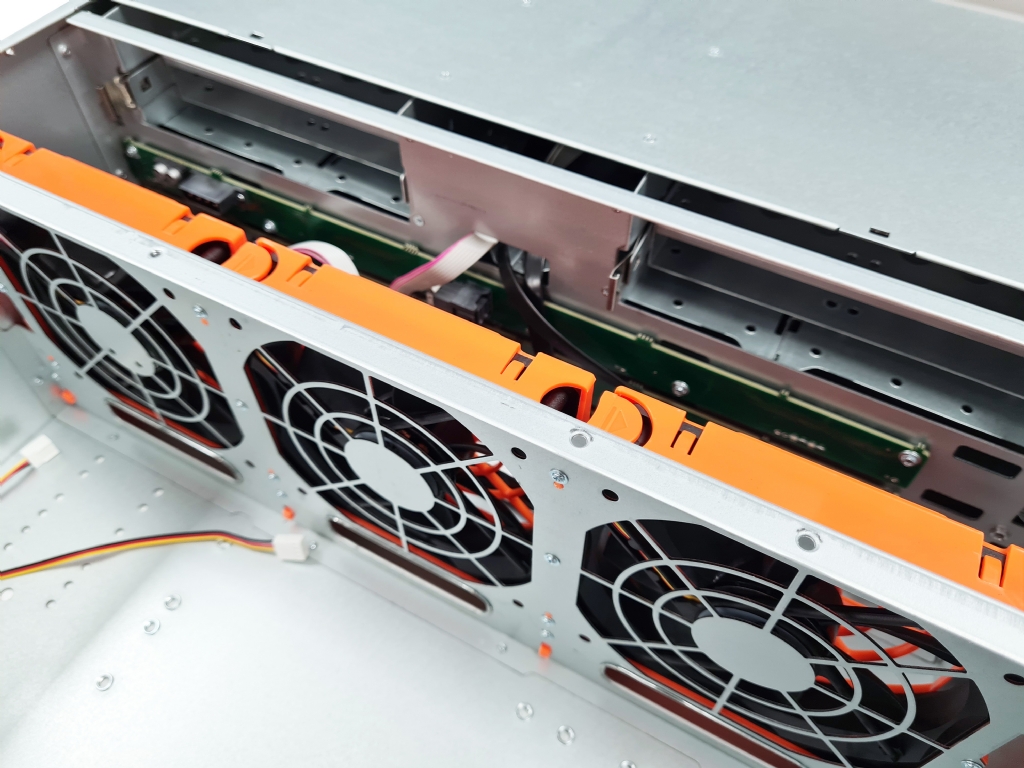

Cooling 3 x 120mm Middle Fan Wall (Molex Power Input)
2x 80mm Rear 3-pin Fans
Power Supply Form Factor Standard ATX
Mini Redundant PSU (Note Requires Additional Bracket)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 21.65" x 7.0" (483mm x 550mm x 176mm)
Weight 16.8 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
