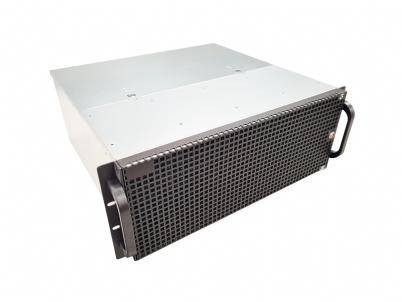

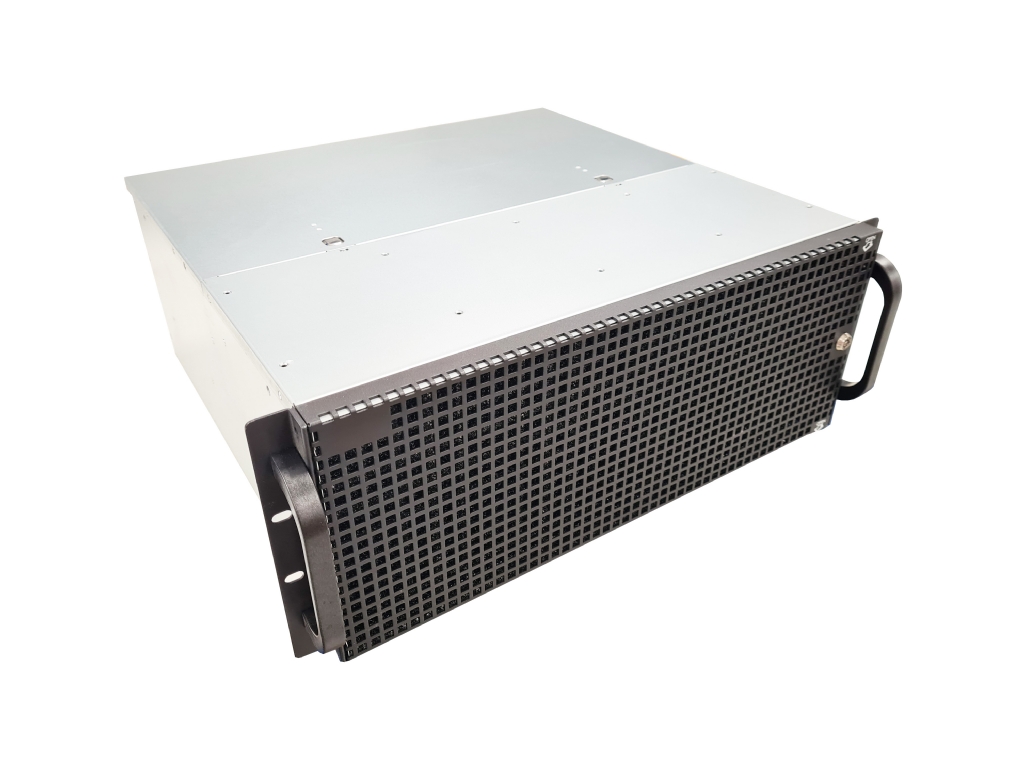

4U Short Storage Chassis w/ 8x 3.5" SATA Hot-Swap Bays - EATX Motherboard Support

Key Product Features:

  • 4U Rackmount Form Factor
  • 400mm Chassis Depth
  • 483mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 8 Hot-Swap Bays - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-43400-8HS
4U Short Storage Chassis w/ 8x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-43400-8HS from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 0
Internal 2.5" 0
Hotswap 3.5" 8 (or 2.5")
Hotswap 2.5" 8 (or 3.5")
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane 8x SATA/SAS Hot-Swap Bays with 2x SFF-8643 12Gb/s HD MiniSAS Connectors - Supports SATA 6Gbps and SAS 12Gbps Drives
2x Molex Power Inputs
Expansion Slots Full Height 7
Low Profile 0
Cooling 2 x Rear 80mm 3-pin Fans
Power Supply Form Factor Standard ATX
Mini Redundant (Note Requires Additional Bracket)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 15.74" x 7" (483mm x 400mm x 176mm)
Weight 11.25 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
