4U Standard Chassis 10 x 3.5" HDD + 1 x 2.5" HDD/SSD + 3 x 5.25" Bays

Key Product Features:

  • 4U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • 4U Mini Redundant PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 3 Fixed Bays - External - 5.25"
  • 10 Fixed Bays - Internal - 3.5"
  • 1 Fixed Bays - Internal - 2.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-416A
4U Standard Chassis 10 x 3.5

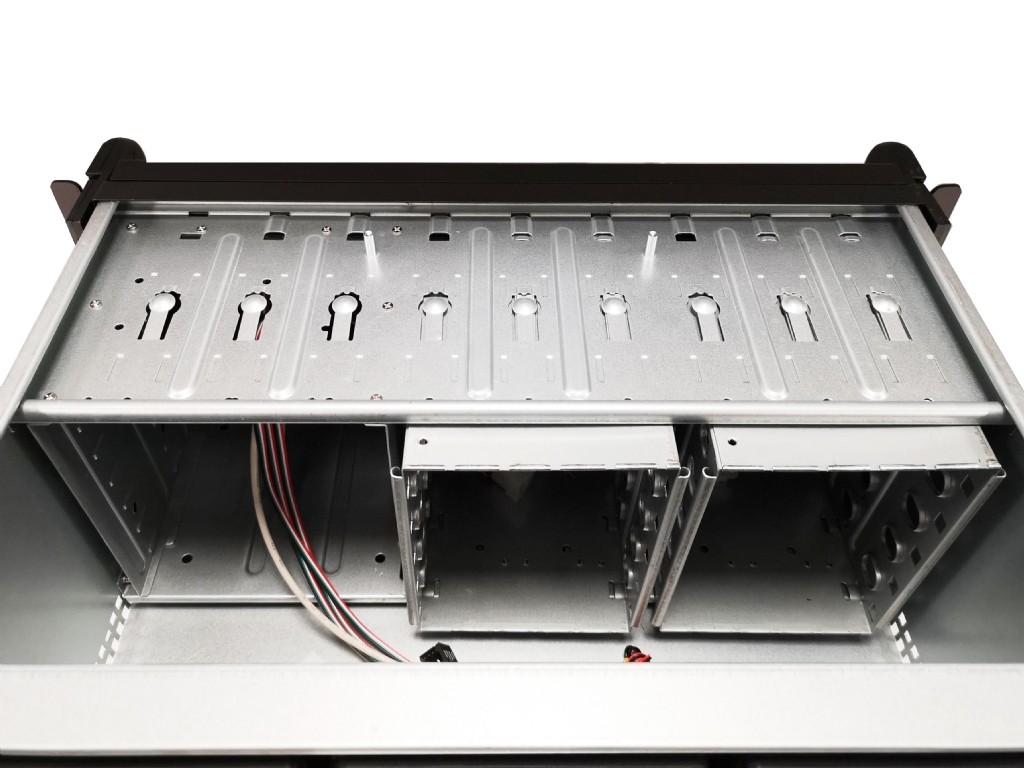

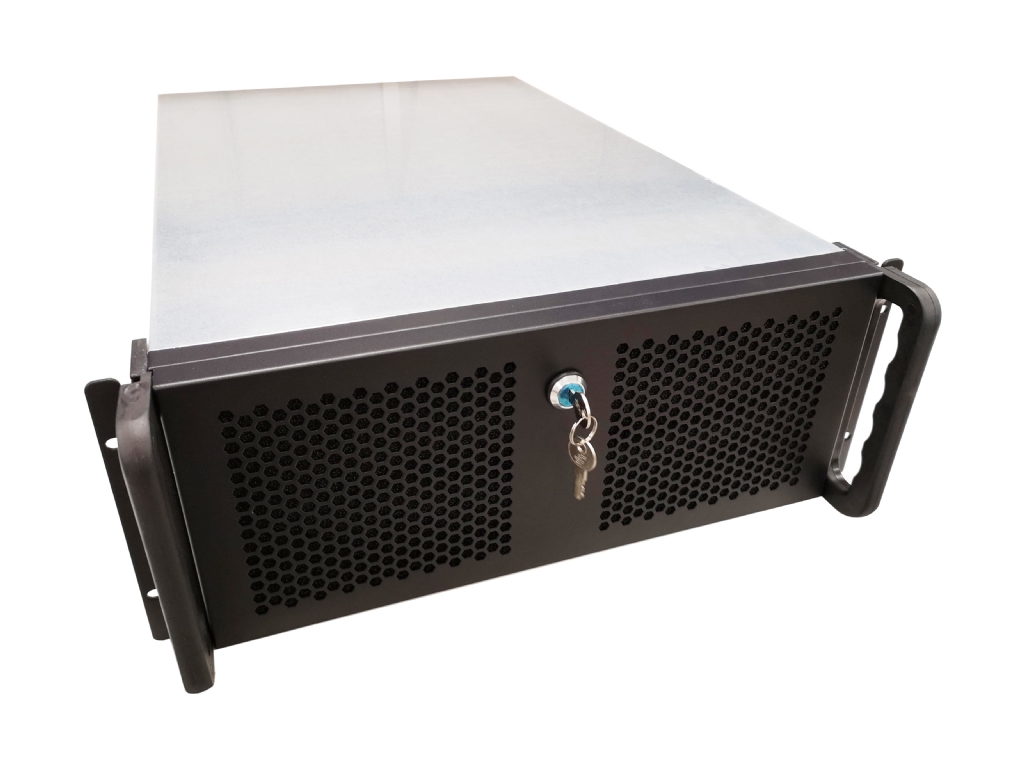

Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-416A from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility

Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard

Drive Bays

External 5.25"

3 X (The 3 x 5.25" bays can be replaced by a variety of drive caddy's including SC-H500 (5 x 3.5" hot swap), SC-H300 (3 x 3.5" hot swap) or SC-055 or SC-056 (5 x 3.5" internal))
External 3.5" 0
Internal 3.5" 10 X (Alternatively by using SC-H300 or SC-H500 in the removable bays this case will take up to 15 x 3.5" Hot Swap SATA (II or III) SAS drives plus 1 x 2.5" HDD/SSD)
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling Fitted with 2 x 120mm front fans and  4 x 80mm fans in mid wall.  Optional 2 x 80mm rear exhaust fans.
Power Supply Form Factor Standard ATX, mini redundant power supply
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 25.6" x 7" (430mm x 650mm x 176mm) x 13.4Kg net
Weight 15.3 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
