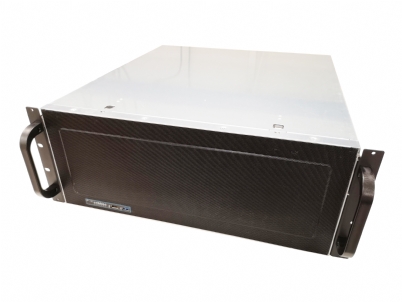

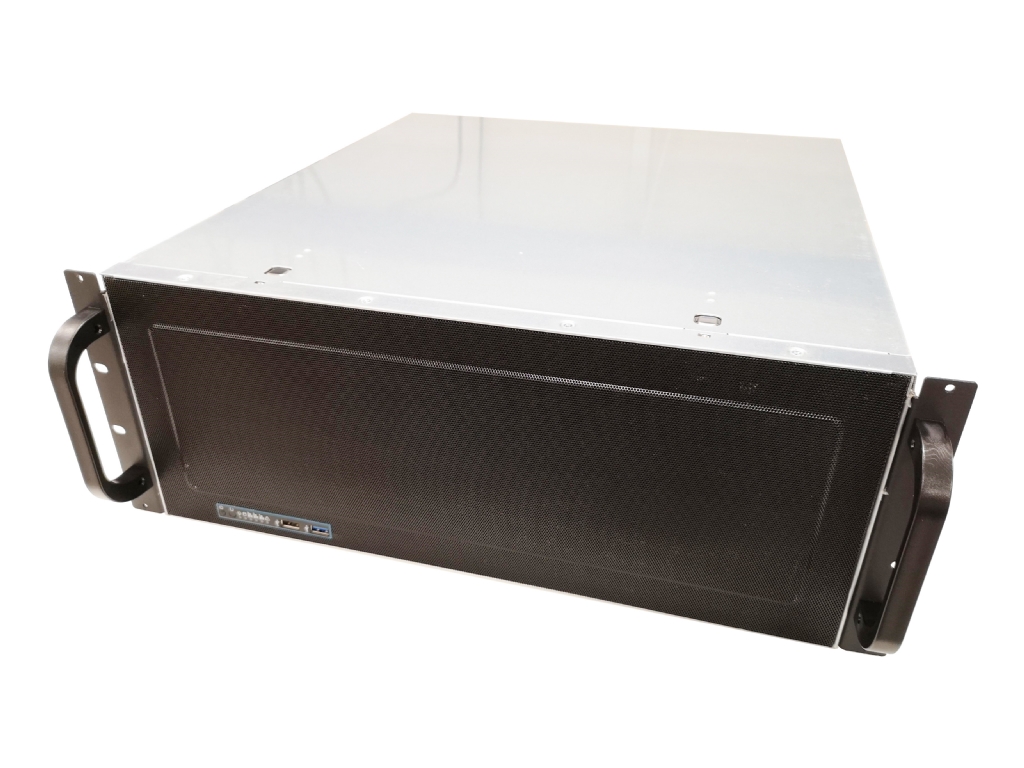

4U Standard Chassis 15 x 3.5" HDD - 480mm Short Depth

Key Product Features:

  • 4U Rackmount Form Factor
  • 480mm Chassis Depth
  • 483mm Chassis Width
  • 176mm Chassis Height
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 15 Fixed Bays - Internal - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-H4-480
4U Standard Chassis 15 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8

Buy Now

Server Case

Server Case are the European authorised distributor and retailer for Logic Case. Server Case have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-H4-480 from Server Case UK

Call: 01283 576162  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") Mini ITX (6.7" x 6.7")
Drive Bays

External 5.25"

0
External 3.5" 0
Internal 3.5" 15
These drive bays use a unique tilting mechanism to gain easy access to all 15 installed HDD's.
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 4 x 80mm Front Fans - 3pin Connection Into Molex Distribution PCB
2 x 80mm Rear Fans - 3pin Connectors
Power Supply Form Factor Standard ATX PS/2, 4U Redundant PSU
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 0
USB 3.0 2
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 18.9" x 7" (483mm x 480mm x 176mm)
Weight 11.15 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
