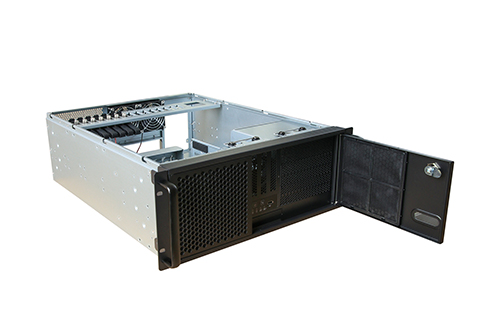

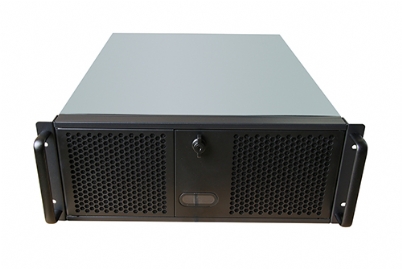

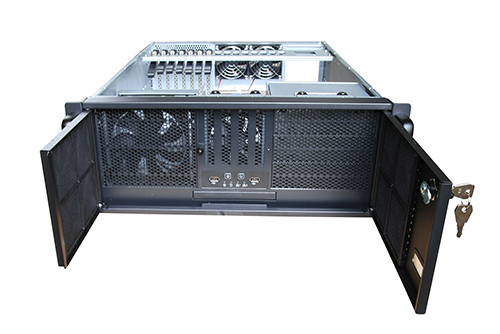

4U Standard Chassis 4 x 3.5" HDD - 550mm Short Depth - Excellent GPU Cooling

Key Product Features:

  • 4U Rackmount Form Factor
  • 550mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • Standard ATX PSU Compatibility
  • CEB (12" x 10.5") M/B Form Factor
  • 3 Fixed Bays - External - 5.25"
  • 4 Fixed Bays - Internal - 3.5"
  • 1 Fixed Bays - Internal - 2.5"
  • 1 Slim ODD
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4550HG-7
4U Standard Chassis 4 x 3.5

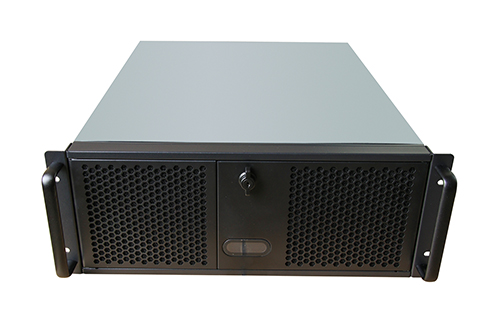

Photo 1

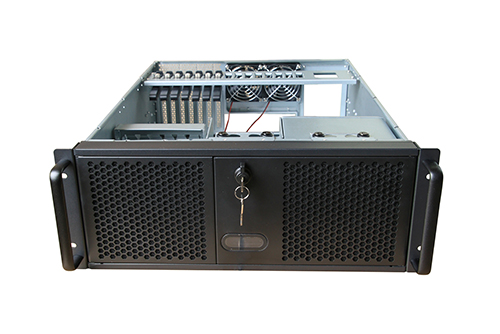

Photo 2

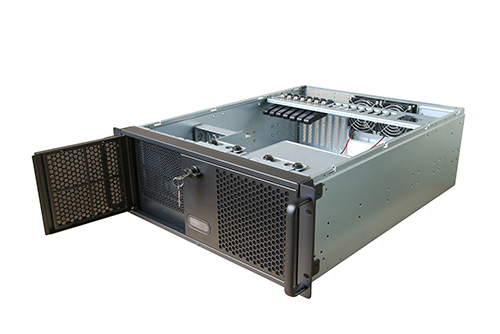

Photo 3

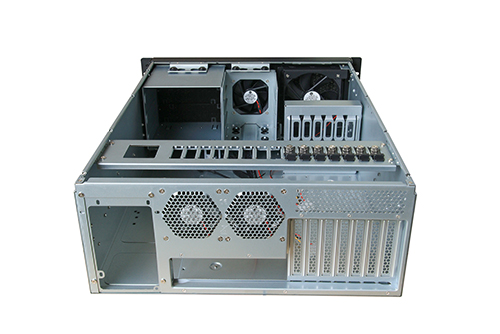

Photo 4

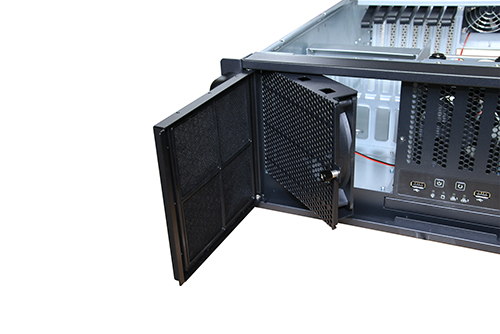

Photo 5

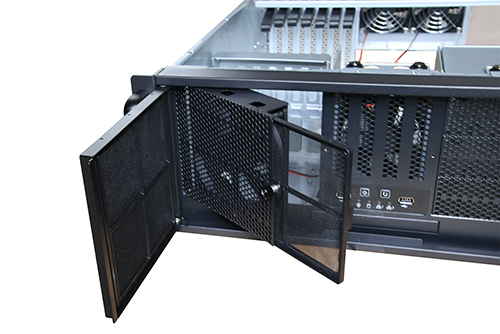

Photo 6

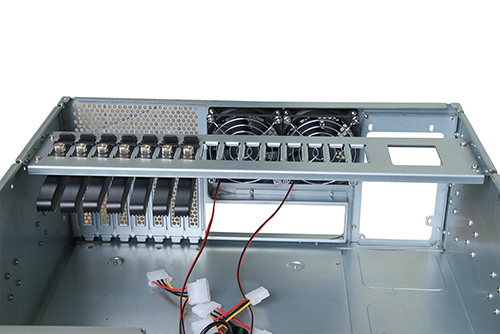

Photo 7

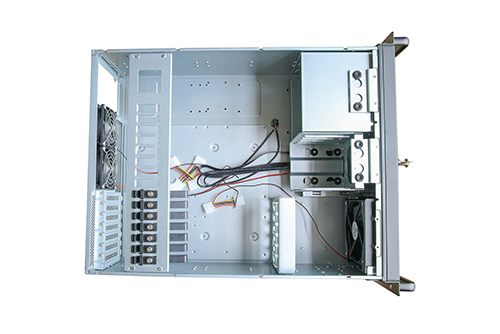

Photo 8
Photo 9
Photo 10
Photo 11
Photo 12

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4550HG-7 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX
Drive Bays

External 5.25"

3
External 3.5" 0
Internal 3.5" 4
Internal 2.5" 1 (or Slim Optical)
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 1 (or 2.5" SSD)
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 1x Center 8cm Fan
1x High Airflow 12cm Fan (To assist with GPU cooling)
2x Rear 8cm Fans
Power Supply Form Factor Standard ATX
Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 700L x 550W x 320H mm
Weight 14.5kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
