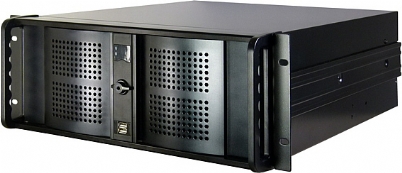

4U Standard Chassis 5x 3.5" HDD + 3x 5.25" Bays, ATX PSU

Key Product Features:

  • 4U Rackmount Form Factor
  • 480mm Chassis Depth
  • 430mm Chassis Width
  • 177mm Chassis Height
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 3 Fixed Bays - External - 5.25"
  • 1 Fixed Bays - External - 3.5"
  • 6 Fixed Bays - Internal - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-4480A
4U Standard Chassis 5x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8
Photo 9

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-4480A from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Supports ATX 12" x 9.6", Micro ATX 9.6" x 9.6", ITX 6.7" x 6.7"
Drive Bays

External 5.25"

3
External 3.5" 0
Internal 3.5" 6
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling Front 120mm + 2 x 80mm Rear Exhaust
Power Supply Form Factor ATX
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 430mm(W) x 480mm(D) x 177mm(H) 19" x 19" x 7"
Weight 11 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
