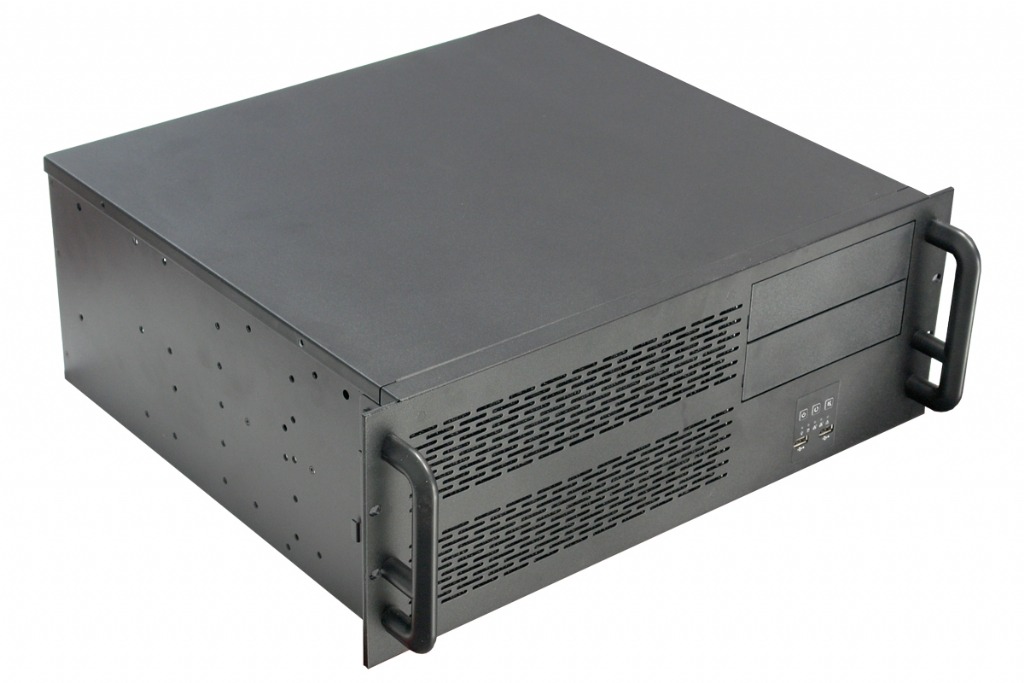

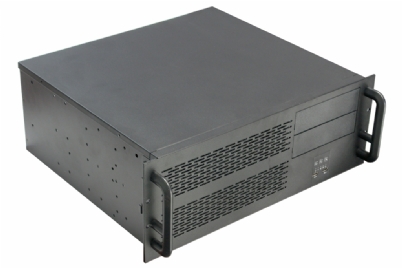

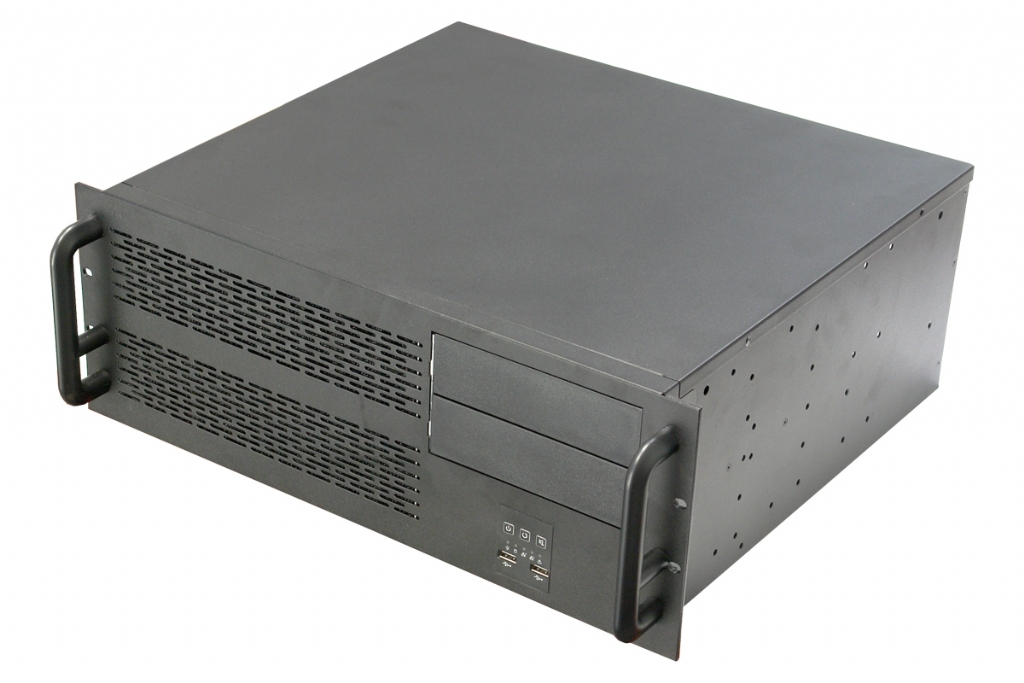

4U Standard Chassis 6x 3.5" HDD + 2x 5.25" Bays

Key Product Features:

  • 4U Rackmount Form Factor
  • 400mm Chassis Depth
  • 430mm Chassis Width
  • 176mm Chassis Height
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 2 Fixed Bays - External - 5.25"
  • 6 Fixed Bays - Internal - 3.5"
  • 7 Full Height PCI Expansion Slots
Product Code/SKU: SC-43400
4U Standard Chassis 6x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6
Photo 7
Photo 8
Photo 9
Photo 10

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-43400 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications



Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 6
Internal 2.5" 0
Hotswap 3.5" Additional 3 x 3.5" Hot Swap HDD available using SC-H300 in the 2 x 5.25" Drives
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 2 x 80mm rear ball bearing fans
Power Supply Form Factor Standard ATX.  (Will take Mini Redundant PSU with adapter plate SC-BKT-002)
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions ( W x D x H ): 19" x 15.74" x 7" (483mm x 400mm x 176mm)
Weight 10.5 kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
