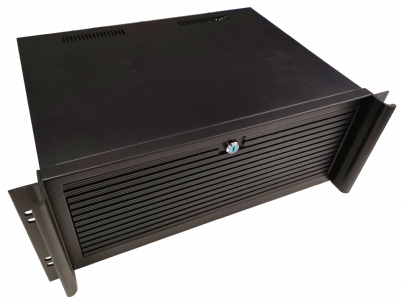

4U Super Short Depth Chassis - 320mm Depth - Includes 500W PSU - 3x 3.5" SATA Hot-Swap - Ideal for Short Depth Cabinets

Key Product Features:

Product Code/SKU: SC-44340
4U Super Short Depth Chassis - 320mm Depth - Includes 500W PSU - 3x 3.5
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-44340 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX
Drive Bays

External 5.25"

2
External 3.5" 0
Internal 3.5" 2
Internal 2.5" 0
Hotswap 3.5" 3
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Logic Case SC-H300 SATA Hot-Swap Enclosure Included
3x SATA Hot-Swap Bays for 3.5" or 2.5" HDD or SSD
Rear Connectors: 3x Standard SATA, 2x Molex Power
Expansion Slots Full Height 7
Low Profile 0
Cooling None Installed
Option for 1x Rear 60mm Fan
Power Supply Form Factor 1U Single PSU
500W Logic Case 1U Single PSU Included
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power and HDD LEDs
Colour Black
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 320mm Depth
177.6mm Height
143mm Width
Weight 16kg (Approx)
What's Included
  • 1 x Chassis
    • Logic Case SC-H300 3x 3.5" Hot-Swap Module Installed
    • Logic Case SC-SG1U500 1U 500W PSU Installed
  • 1 x Front Door Key Set
  • 1 x Accessory Box
