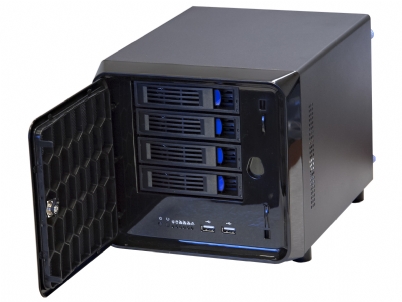

Desktop NAS Enclosure

Key Product Features:

  • 6G SATA III/SATA II/SAS Backplane
  • 4 Hot-Swap Bays - 3.5"
Product Code/SKU: SC-N400
Desktop NAS Enclosure
Photo 1
Photo 2
Photo 3
Photo 4
Photo 5
Photo 6

Buy Now

Server Case UK Ltd

Server Case UK are the European authorised distributor and retailer for Logic Case. Server Case UK have thousands of chassis and components in stock for easy purchasing and shipping to any worldwide location.

Buy Logic Case SC-N400 from Server Case UK

Call: 0800 652 1649  |  Email: [email protected]  |  Website: www.servercase.co.uk

Specifications

Desktop NAS Enclosure 4 x 3.5" Hot Swap 6Gb/s plus 1 x 2.5" internal bay.

Ideal for Office, Home Study or Living Room

Features:

  • Black mini-ITX form computer storage case;
  • ITX box with four hot swap bays;
  • Support four hot swap SAS 6Gb/s SATA III drives and one 2.5" OS drive;
  • Lockable Enclosure
  • Support standard Flex ATX power supply;
  • Support mini-ITX motherboard;
  • Expandable with 1 x full height PCI rear slot.
  • Support all operating system;
  • Comes with an 80mm rear exhaust fan;
  • Dimension:197mm x 191mm x 254mm (W x H x D) 7.75 x 7.5 x 10 inch
  • Weight: 4Kg (9 lbs)
  • RoHS compliant;

Specifications:

Drive Bay: Supports four hot swap 3.5" SAS 6Gb/s SATA III drives and one 2.5" OS drive;

Cooling Fan:
1 x 80mm rear exhaust fan

Note on CPU Cooling:  Due to the compact nature of the unit a low profile cooler needs to be used (See Related Products below)
Switch:
Power ON/OFF x 1, System reset x 1
Indicator:
Power ON/OFF x 1, HDD x 1
Front Connector:
Two front USB 2.0 ports
Motherboard Compatibility:
Support Mini-ITX motherboard (6.7 x 6.7 inch)

Expandability: 1 x Full Height PCI slot

Power Supply: Support standard Flex ATX power supply (NOT included)
Dimensions 19.7 x 19.1 x 25.4 cm ( W x D x H ):
7.75 x 7.5 x 10 inch
Weight:
4Kg (9 lbs)

Similar to Norco ITX-S4
