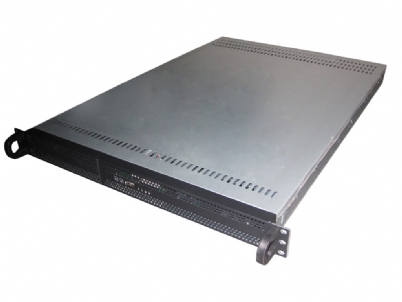

1U Standard Chassis 2 x 3.5" HDD + 1 x 5.25" CD

Key Product Features:

  • 1U Rackmount Form Factor
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 44.5mm Chassis Height
  • 1U Single PSU Compatibility
  • EEB (12" x 13") M/B Form Factor
  • 1 Fixed Bays - External - 5.25"
  • 2 Fixed Bays - Internal - 3.5"
  • 1 Full Height PCI Expansion Slots
Product Code/SKU: SC-13650
1U Standard Chassis 2 x 3.5
Photo 1
Photo 2
Photo 3
Photo 4

Specifications

Product Overview

The SC-13650 offers a fantastic range of options for many different applications.  It is equally capable as a DVR, Audio Visual System, Media Server, Small Business Server or High Performance Dual CPU business server.  Additionally its 1U format provides the perfect basis for a rack mounted system where this chassis forms the control server for a larger array of storage servers or JBOD's.

The SC-13550 and SC-13650 family of server chassis have been designed to offer both office and home user the perfect balance of system density, drive flexibilty and cost.

The SC-13650 has the ability to accept the most powerful Dual CPU and motherboard server combinations in EEB format.  The case benefits from a full width fan wall incorporating 6 x 40mm server fans offering outstanding cooling to even the most thermally challenging system.



Features

  • 2 x 3.5" + 1 x 5.25" or 3 x 3.5" if no 5.25" drive installed
  • Support up to EEB motherboard
  • 6x40mm ball bearing fans for better ventilation
  • 2 x Front accessible USB 2.0 ports
  • Smooth border with no sharp edges for easy handling



Specifications

  • Drive Bay: 2 x 3.5" + 1 x 5.25" (alternative 3 x 3.5" if no DVD is used) (altenative up to 6 x 2.5" using 3 x SC-02A converters)
  • 4 x 2.5" SATA Hot Swap option available using additional SC-H250.
  • Cooling Fan: 6 x 40mm front fans
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 3
  • Connectors: 2x front accessible USB 2.0 ports
  • Motherboard Compatibility: Supports, EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard
  • Expansion: 1 x PCI or PCI-E
  • Power Supply: Standard 1U PSU
  • Dimensions: 650MM(D)* 430MM(W)* 44.5MM(H) x 10Kg
  • Packing: Gross 8.85kg Nett 7.2Kg  carton box :830mm*555mm*110mm( single box)
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity: 5% to 95%,non-condensing
  • Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
  • Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
